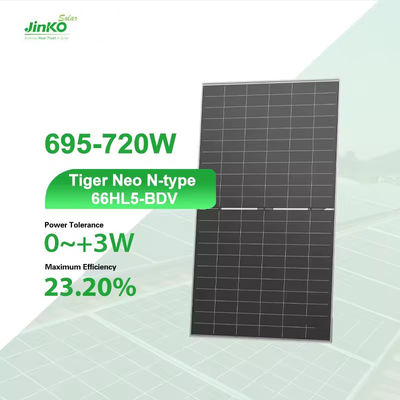

720W Jinko Solar Module Tiger Neo N-Type Glass Solar Panel for Industrial Applications

Name: 720W Jinko Solar Module Tiger Neo N-Type Glass Solar Panel for Industrial Applications
Brand: Hefei Tainuo New Energy Technology Co., Ltd.
SKU: Tiger Neo N-type 66HL5-BDV
Price: 49,999.11 USD
Availability: InStock

All Products

Solar Light
(40)

Solar Rechargeable Fan
(31)

Solar Mosquito Killer Lamp
(13)

Solar Powered Radio
(16)

Solar Lighting System
(15)

Portable Mini Solar Panels
(20)

Foldable Solar Panels
(58)

Portable Solar Power Station
(61)

Solar Air Conditioner
(20)

Tier 1 Solar Panels
(506)

Solar Inverter
(266)

Solar Energy System
(61)

Solar Lithium Battery
(120)

Flexible Solar Panels
(40)

I'm Online Chat Now

720W Jinko Solar Module Tiger Neo N-Type Glass Solar Panel for Industrial Applications

Large Image : 720W Jinko Solar Module Tiger Neo N-Type Glass Solar Panel for Industrial Applications

Product Details:

Place of Origin:	Anhui
Brand Name:	Jinko
Model Number:	Tiger Neo N-type 66HL5-BDV

Payment & Shipping Terms:

Minimum Order Quantity:	100000 watts
Price:	$0.11/watts 100000-1499999 watts

Contact Now

720W Jinko Solar Module Tiger Neo N-Type Glass Solar Panel for Industrial Applications

Description

Cell Size:	182mmx182mm	Type:	PERC, Half Cell, Bifacial, Double-glass, N-TYPE
Panel Dimensions:	2384130333 Mm	Panel Efficiency:	23.20%
Product Name:	23.20%	Cell Type:	N Type Mono-crystalline
Junction Box:	IP68 Rated	Certificate:	CE TUV
Warranty:	25 Years	Front Glass:	2.0mm,Anti-Reflection Coating
Back Glass:	2.0mm, Heat Strengthened Glass	Power Tolerance:	0-+3%
IEC Fire Type:	IEC Class C	Output Cables:	4.0 Mm2 (+): 400 Mm , (-): 200 Mm Or Customized Length

Product Description

Specification

STC: Irradiance 1000W/m2, cell temperature : 25centidegree, AM=1.5.

Module Type	JKM695N-66HL5-BDV	JKM700N-66HL5-BDV	JKM705N-66HL5-BDV	JKM710N-66HL5-BDV	JKM715N-66HL5-BDV	JKM720N-66HL5-BDV
Maximum Power ‒ Pmax [Wp]	695	700	705	710	715	720
Maximum Power Voltage ‒ Vmp [V]	40.29	40.42	40.53	40.65	40.77	40.89
Maximum Power Current ‒ Imp [A]	17.25	17.32	17.40	17.47	17.54	17.61
Open-circuit Voltage ‒ Voc [V]	48.24	48.40	48.56	48.73	48.88	49.04
Short-circuit Current ‒ Isc [A]	18.33	18.40	18.46	18.53	18.60	18.67
Module Efficiency STC [%]	22.4	22.5	22.7	22.9	23.0	23.2

NOCT: Irradiance 800W/m2, Ambient Temperature 20centidegree, AM=1.5, Wind speed 1m/s.

Module Type	JKM695N-66HL5-BDV	JKM700N-66HL5-BDV	JKM705N-66HL5-BDV	JKM710N-66HL5-BDV	JKM715N-66HL5-BDV	JKM720N-66HL5-BDV
Maximum Power ‒ Pmax [Wp]	524	528	531	535	539	543
Maximum Power Voltage ‒ Vmp [V]	37.54	37.68	37.84	37.97	38.08	38.21
Maximum Power Current ‒ Imp [A]	13.95	14.00	14.04	14.09	14.15	14.20
Open-circuit Voltage ‒ Voc [V]	45.82	45.97	46.13	46.29	46.43	46.58
Short-circuit Current ‒ Isc [A]	14.80	14.85	14.90	14.96	15.01	15.07

Operating Temperature: -40 ~+70℃Maximum system voltage: 1000VDC (IEC)
Maximum series fuse rating: 25A
Power tolerance: 0~+3%

Temperature coefficients of Pmax: -0.29%/℃
Temperature coefficients of Voc: -0.25%/℃
Temperature coefficients of Isc: 0.045%/℃
Nominal operating cell temperature (NOCT): 45±2℃
