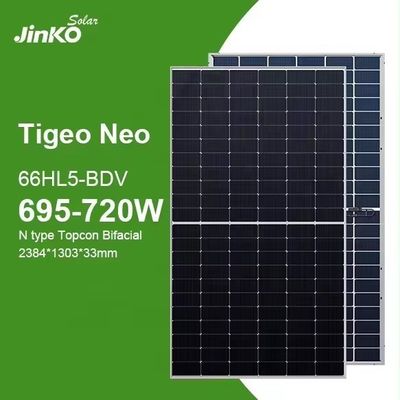

Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo

Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo

Large Image :  Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo

Product Details:
Place of Origin: Anhui
Brand Name: Jinko
Model Number: Tiger Neo N-type 66HL5-BDV
Payment & Shipping Terms:
Minimum Order Quantity: 100000 watts
Price: $0.11/watts 100000-1499999 watts
Contact Now

Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo

Description
Cell Size: 182mmx182mm Type: PERC, Half Cell, Bifacial, Double-glass, N-TYPE
Panel Dimensions: 2384*1303*33 Mm Panel Efficiency: 23.20%
Product Name: 23.20% Cell Type: N Type Mono-crystalline
Junction Box: IP68 Rated Certificate: CE TUV
Warranty: 25 Years Front Glass: 2.0mm,Anti-Reflection Coating
Back Glass: 2.0mm, Heat Strengthened Glass Power Tolerance: 0-+3%
IEC Fire Type: IEC Class C Output Cables: 4.0 Mm2 (+): 400 Mm , (-): 200 Mm Or Customized Length

Product Description
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 0
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 1
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 2
Specification
STC: Irradiance 1000W/m2, cell temperature : 25centidegree, AM=1.5.
Module Type
JKM695N-66HL5-BDV
JKM700N-66HL5-BDV
JKM705N-66HL5-BDV
JKM710N-66HL5-BDV
JKM715N-66HL5-BDV
JKM720N-66HL5-BDV
Maximum Power ‒ Pmax [Wp]
695
700
705
710
715
720
Maximum Power Voltage ‒ Vmp [V]
40.29
40.42
40.53
40.65
40.77
40.89
Maximum Power Current ‒ Imp [A]
17.25
17.32
17.40
17.47
17.54
17.61
Open-circuit Voltage ‒ Voc [V]
48.24
48.40
48.56
48.73
48.88
49.04
Short-circuit Current ‒ Isc [A]
18.33
18.40
18.46
18.53
18.60
18.67
Module Efficiency STC [%]
22.4
22.5
22.7
22.9
23.0
23.2
NOCT: Irradiance 800W/m2, Ambient Temperature 20centidegree, AM=1.5, Wind speed 1m/s.
Module Type
JKM695N-66HL5-BDV
JKM700N-66HL5-BDV
JKM705N-66HL5-BDV
JKM710N-66HL5-BDV
JKM715N-66HL5-BDV
JKM720N-66HL5-BDV
Maximum Power ‒ Pmax [Wp]
524
528
531
535
539
543
Maximum Power Voltage ‒ Vmp [V]
37.54
37.68
37.84
37.97
38.08
38.21
Maximum Power Current ‒ Imp [A]
13.95
14.00
14.04
14.09
14.15
14.20
Open-circuit Voltage ‒ Voc [V]
45.82
45.97
46.13
46.29
46.43
46.58
Short-circuit Current ‒ Isc [A]
14.80
14.85
14.90
14.96
15.01
15.07
Operating Temperature: -40 ~+70℃Maximum system voltage: 1000VDC (IEC)
Maximum series fuse rating: 25A
Power tolerance: 0~+3%
Temperature coefficients of Pmax: -0.29%/℃
Temperature coefficients of Voc: -0.25%/℃
Temperature coefficients of Isc: 0.045%/℃
Nominal operating cell temperature (NOCT): 45±2℃
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 3
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 4
Company Profile
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 5
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 6
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 7
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 8
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 9
Packing & Delivery
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 10
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 11
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 12
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 13
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality?
A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4:After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 14
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 15
Commercial N Type Topcon PV Module 720W 715W 710W 705W 700W Jinko Solar Module Tiger Neo 16
