Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W

Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W

Large Image :  Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W

Product Details:
Place of Origin: Anhui,China
Brand Name: JA
Model Number: JAM72D42 605-630/LB
Payment & Shipping Terms:
Minimum Order Quantity: 100000 watts
Price: $0.11/watts 100000-1499999 watts
Contact Now

Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W

Description
Cell Size: 182mmx182mm Type: PERC, Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON
Panel Dimensions: 2465*1134*35mm Panel Efficiency: 22.5%
Warranty: 30 Years, 30 Years Product Name: Solar Panel
Junction Box: IP68 ,3 Diodes Frame: Anodized Aluminium Alloy
Glass: 2.0mm Tempered Low Iron Cable: 4mm ^2 (IEC),12AWG
Wind Load, Back: 2400Pa / 2400Pa Snow Load, Front: 3000Pa / 5400Pa
Highlight:

Snow Resistant N Type Solar Panels

,

N Type Solar Panels 630W

,

n type pv module 635W

Product Description
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W 0
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W 1
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W 2
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W 3
Specification
Mechanical Data

Model
JAM72D42-605-630/MR
Solar Cells
Mono-16BB, N-type
Cell Number
144(6*24)
Dimensions
2465*1134*35mm
Weight
34.6kg
Cable Cross Section Size
4mm² (IEC),12 AWG(UL)
Junction Box
IP68, 3 diodes
Connector
QC 4.10-351/ MC4-EVO2A
Cable Length(Including Connector)
Portrait: 300mm(+)/400mm(-);800mm(+)/ 800mm(-)(Leapfrog)

Landscape: 1500mm(+)/ 1500mm(-)
Packaging Coniguration
31pcs/Pallet, 496pcs/40HQ Container
TYPE
JAM72D42-605/LB
JAM72D42-610/LB
JAM72D42-615/LB
JAM72D42-620/LB
JAM72D42-625/LB
JAM72D42-630/LB
Rated Maximum Power(Pmax) [W]
653
659
664
670
675
680
Open Circuit Voltage(Voc) [V]
51.27
51.47
51.67
51.86
52.05
52.24
Maximum Power Voltage(Vmp) [V]
42.91
43.11
43.31
43.51
43.71
43.90
Short Circuit Current(lsc) [A]
16.01
16.07
16.12
16.18
16.23
16.29
Maximum Power Current(lmp) [A]
15.23
15.28
15.34
15.39
15.44
15.50
Irradiation Ratio(rear/front)
10%

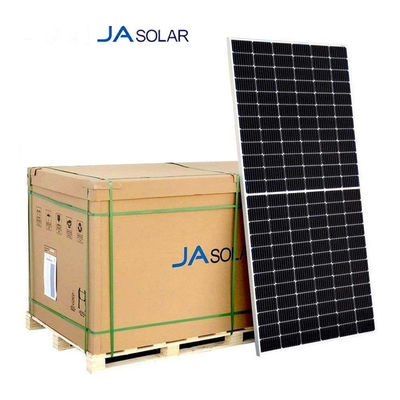

Packing & Delivery
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W 4
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality?
A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4:After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W 5
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W 6
Front Snow Load Resistant N Type Solar Panels 630W 610W 615W 620W 625W 635W 7
