Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass

Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass

Large Image :  Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass

Product Details:
Place of Origin: Hefei Anhui
Brand Name: Jinko
Model Number: 72HL4-BDV
Payment & Shipping Terms:
Minimum Order Quantity: 100000 watts
Price: $0.11/watts 100000-1499999 watts
Contact Now

Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass

Description
Cell Size: 182mmx182mm Type: PERC, Half Cell, Bifacial, Double-glass, N-TYPE

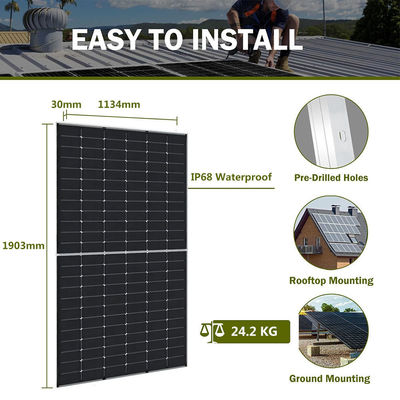

Panel Dimensions: 2278*1134*30mm Panel Efficiency: 22.84%, 22.84%
Product Name: Solar Panel 78HL4-BDV(570W-590W) Warranty: 25 Years
No. Of Cells: 144 (2*72) Cell Type: N Type Mono-crystalline
Junction Box: IP68 Rated Front Glass: 2.0mm,Anti-Reflection Coating
Certificate: CE TUV Back Glass: 2.0mm, Heat Strengthened Glass
Power Tolerance: 0-+3%

Product Description
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 0
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 1
Specification
Module Type
JKM570N-72HL4
JKM575N-72HL4
JKM580N-72HL4
JKM585N-72HL4
JKM590N-72HL4
Maximum Power (Pmax)
570Wp
575Wp
580Wp
585Wp
590Wp
Maximum Power Voltage (Vmp)
41.95V
42.14V
42.29V
42.44V
42.59V
Maximum Power Current (Imp)
13.35A
13.41A
13.48A
13.55A
13.62A
Open-circuit Voltage (Voc)
50.67V
50.87V
51.07V
51.27V
51.47V
Short-circuit Current (Isc)
14.13A
14.19A
14.25A
14.31A
14.37A
Module Efficiency STC (%)
21.68%
21.87%
22.07%
22.26%
22.45%
Operating Temperature(ȭ)
-40℃~+85℃




Maximum system voltage
1000/1500VDC (IEC)




Maximum series fuse rating
30A




Power tolerance
0~+3%




Temperature coefficients of Pmax
-0.29%/℃




Temperature coefficients of Voc
-0.25%/℃




Temperature coefficients of Isc
0.045%/℃




Nominal operating cell temperature (NOCT)
45±2℃




Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 2
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 3
Packing & Delivery
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 4
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 5
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 6
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 7
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 8
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 9
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 10
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 11
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 12
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality?
A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4:After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 13
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 14
Jinko Perc Double Glass 550W 570W Monocrystalline Tier 1 Solar Panels with 2.0mm Front Glass 15
