Product Details:
|
Cell Size: | 210mmx210mm | Type: | PERC, Half Cell, Bifacial, Double-glass, N-TYPE |
---|---|---|---|
Panel Dimensions: | 2384*1134*30 Mm | Panel Efficiency: | 20.9%-21.6% |
Warranty: | 25years | Product Name: | Jinko 565-585W ( N Type) |
Application: | Solar Power System | Solar Cell: | N-type Monocrystalline |
Frame: | Anodized Aluminium Alloy | Junction Box: | IP68 Rated |
Glass: | 3.2 Mm (0.13 Inches), HighTarmission, AR Coated Heat Stengtered Glass | Connector: | MC Compatible |
Cables: | 4.0mm2, Portrait: 300mm / Landscape: 1200mm |

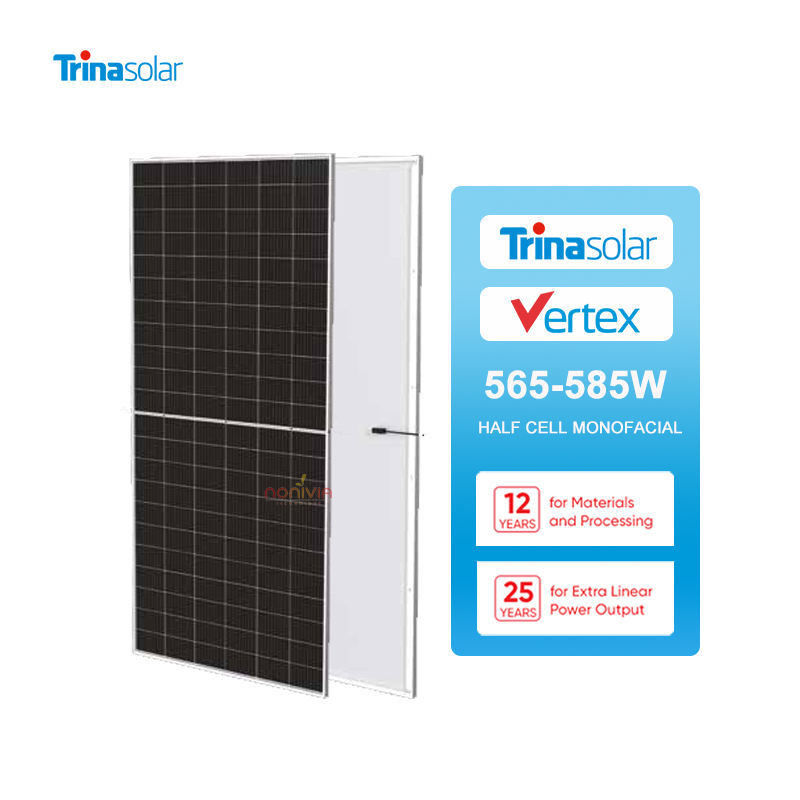

Module Type: TSM-DE19R 565-585M | 565 | 570 | 575 | 580 | 585 | ||||
Peak Power Watts-Pmax(Wp)* | 565 | 570 | 575 | 580 | 585 | ||||
Power Tolerance-Pmax(W) | 0 ~ +5 | ||||||||
Maximum Power Voltage-Vmpp(V) | 38.3 | 38.5 | 38.8 | 39.0 | 39.3 | ||||
Maximum Power Current-Impp(A) | 14.76 | 14.79 | 14.83 | 14.86 | 14.90 | ||||
Open Circuit Voltage-Voc(V) | 45.6 | 45.8 | 46.1 | 46.3 | 46.6 | ||||
Short Circuit Current-Isc(A) | 15.81 | 15.85 | 15.90 | 15.94 | 15.99 | ||||

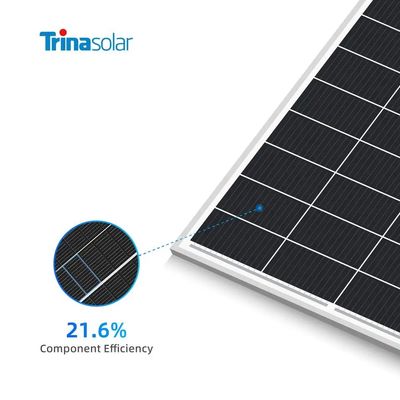

Module Efficiency(%) | 20.9 | 21.1 | 21.3 | 21.5 | 21.6 | ||||
Maximum System Voltage | 1500V DC (IEC) | ||||||||
Max Series Fuse Rating | 30A | ||||||||
Operational Temperature | -40~+85ºC | ||||||||
Temperature Coeffcient of Pmax | - 0.34%/°C | ||||||||
Temperature Coeffcient of Voc | - 0.25%/°C | ||||||||
Temperature Coeffcient of Isc | 0.04%/°C |
