Product Details:
Place of Origin: Anhui
Brand Name: Trina
Model Number: TSM-DE19R 565-585M
Payment & Shipping Terms:
Minimum Order Quantity: 100000 watts
Price: $0.11/watts 100000-499999 watts

4.0mm2 Cables and 3.2mm Glass Cells Trina Bifacial Solar Panel 565W 570W 575W 580W 585W

Description
Cell Size: 182mmx182mm Type: PERC, Half Cell, Bifacial, Double-glass, N-TYPE
Panel Dimensions: 2384*1134*30 Mm Panel Efficiency: 20.9%-21.6%
Product Name: Jinko 565-585W ( N Type) Application: Solar Power System
Solar Cell: N-type Monocrystalline Frame: Anodized Aluminium Alloy
Junction Box: IP68 Rated Glass: 3.2 Mm (0.13 Inches), HighTarmission, AR Coated Heat Stengtered Glass
Connector: MC Compatible Cables: 4.0mm2, Portrait: 300mm / Landscape: 1200mm

Product Description
4.0mm2 Cables and 3.2mm Glass Cells Trina Bifacial Solar Panel 565W 570W 575W 580W 585W 0
4.0mm2 Cables and 3.2mm Glass Cells Trina Bifacial Solar Panel 565W 570W 575W 580W 585W 1
4.0mm2 Cables and 3.2mm Glass Cells Trina Bifacial Solar Panel 565W 570W 575W 580W 585W 2
Specification
Module Type: TSM-DE19R 565-585M
565
570
575
580
585
Peak Power Watts-Pmax(Wp)*
565
570
575
580
585
Power Tolerance-Pmax(W)
0 ~ +5
Maximum Power Voltage-Vmpp(V)
38.3
38.5
38.8
39.0
39.3
Maximum Power Current-Impp(A)
14.76
14.79
14.83
14.86
14.90
Open Circuit Voltage-Voc(V)
45.6
45.8
46.1
46.3
46.6
Short Circuit Current-Isc(A)
15.81
15.85
15.90
15.94
15.99
Module Efficiency(%)
20.9
21.1
21.3
21.5
21.6
Maximum System Voltage
1500V DC (IEC)
Max Series Fuse Rating
30A
Operational Temperature
-40~+85ºC
Temperature Coeffcient of Pmax
- 0.34%/°C
Temperature Coeffcient of Voc
- 0.25%/°C
Temperature Coeffcient of Isc
0.04%/°C

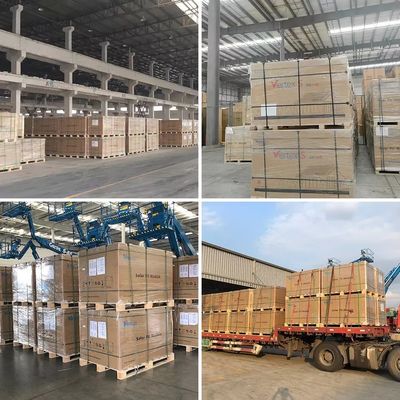

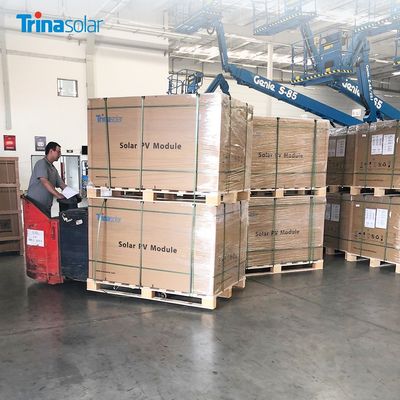

Packing & Delivery
4.0mm2 Cables and 3.2mm Glass Cells Trina Bifacial Solar Panel 565W 570W 575W 580W 585W 3
4.0mm2 Cables and 3.2mm Glass Cells Trina Bifacial Solar Panel 565W 570W 575W 580W 585W 4
4.0mm2 Cables and 3.2mm Glass Cells Trina Bifacial Solar Panel 565W 570W 575W 580W 585W 5
4.0mm2 Cables and 3.2mm Glass Cells Trina Bifacial Solar Panel 565W 570W 575W 580W 585W 6
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Details Images
4.0mm2 Cables and 3.2mm Glass Cells Trina Bifacial Solar Panel 565W 570W 575W 580W 585W 7
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality? A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4:After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
