Product Details:
|
Cell Size: | 210mmx210mm | Type: | Half Cell, Bifacial, Double-glass, N-TYPE |
---|---|---|---|
Panel Dimensions: | 2384x1303x35mm | Panel Efficiency: | 22.5% |

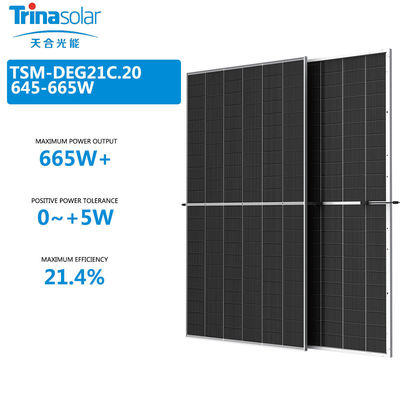

Product Name: | Vertex Bifacial Dual Glass 645W - 665W Solar Panels Trina | Application: | Solar Power System |
Solar Cell: | N-type Monocrystalline | Frame: | 33mm(1.30 Inches) Anodized Aluminium Alloy |
Junction Box: | IP68 Rated | Glass: | 3.2 Mm (0.13 Inches), HighTarmission, AR Coated Heat Stengtered Glass |
Connector: | MC4 EVO2/TS4* | Cables: | Photovoltaic Technology Cable 4.0mm2 (0.006 Inches2) |
Module Type:TSM-DEG21C.20 645-665M | 645 | 650 | 655 | 660 | 665 | ||||
Peak Power Watts-Pmax(Wp)* | 645 | 650 | 655 | 660 | 665 | ||||
Power Tolerance-Pmax(W) | 0 ~ +5 | ||||||||
Maximum Power Voltage-Vmpp(V) | 37.5 | 37.7 | 37.9 | 38.1 | 38.3 | ||||
Maximum Power Current-Impp(A) | 17.23 | 17.27 | 17.31 | 17.35 | 17.39 | ||||
Open Circuit Voltage-Voc(V) | 45.3 | 45.5 | 45.7 | 45.9 | 46.1 | ||||
Short Circuit Current-Isc(A) | 18.31 | 18.35 | 18.40 | 18.45 | 18.50 | ||||
Module Efficiency(%) | 20.8 | 20.9 | 21.1 | 21.2 | 21.4 | ||||
Maximum System Voltage | 1500V DC (IEC) | ||||||||
Max Series Fuse Rating | 35A | ||||||||
Operational Temperature | -40~+85ºC | ||||||||
Temperature Coeffcient of Pmax | - 0.34%/°C | ||||||||
Temperature Coeffcient of Voc | - 0.25%/°C | ||||||||
Temperature Coeffcient of Isc | 0.04%/°C |
