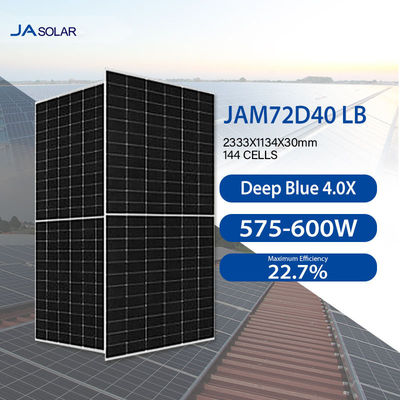

JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB

JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB

Large Image :  JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB

Product Details:
Place of Origin: Anhui,China
Brand Name: JA
Model Number: JAM72D40 575-600/LB
Payment & Shipping Terms:
Minimum Order Quantity: 50000 watts
Price: $0.12/watts 50000-99999 watts
Contact Now

JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB

Description
Cell Size: 182mmx182mm Type: PERC, Half Cell, Bifacial, Double-glass
Panel Dimensions: 2333*1134*30mm Panel Efficiency: 22.5%
Warranty: 25 Years, 25 Years Product Name: Solar Panel
Junction Box: IP68 ,3 Diodes Frame: Anodized Aluminium Alloy
Glass: 2.0mm Certificate: IEC ISO TUV

Product Description
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB 0
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB 1
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB 2
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB 3
Specification
Mechanical Characteristics
Cell Type
Mono-crystalline
No. of cells
144(6*24)
Dimensions
2333*1134*30mm
Weight
32.5kg
Front Glass/Back Glass
2.0mm/20.mm
Junction Box
IP68, 3 diodes
Output Cross Section Size
4mm² （IEC) 12AWG(UL)
Connector
QC4.10-35/MC-EVO2A


Cable Length(Including Connector)
Portrail:200mm(+)/300mm(-);
800mm(+)/800mm(-)(Leapfrog)
Landscape:1500mm(+)1500mm(-)
Packaging Configuration
36pcs/Pallet, 720pcs/40ft Container
TEMPERATURE RATINGS
MAXIMUMRATINGS
NOCT (Nominal Operating Cell Temperature)
43°C (±2°C)
Operational Temperature
-40~+85ºC
Temperature Coefficient of P.MAX
- 0.34%/°C


Maximum System Voltage
1500V DC (IEC)

1500V DC (UL)
Temperature Coeffcient of Voc
- 0.25%/°C
Temperature Coffcient of Isc
0.04%/°C
Max Series Fuse Rating
30A
Packing & Delivery
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB 4
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB 5
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality?
A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4：After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB 6
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB 7
JA Solar Deep Blue 4.0 N-Type Bifacial Double Class Mono Module 575-600W JAM72D40 LB 8
