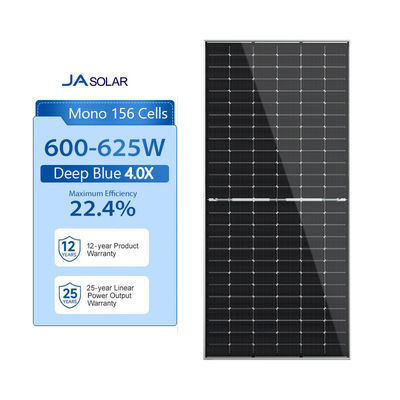

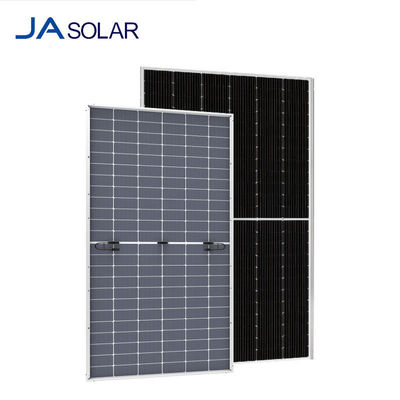

2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels

2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels

Large Image :  2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels

Product Details:
Place of Origin: Anhui, China
Brand Name: JA
Model Number: JAM78D40/MB
Payment & Shipping Terms:
Minimum Order Quantity: 50000 watts
Price: $0.12/watts 50000-99999 watts
Contact Now

2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels

Description
Cell Size: 182mmx182mm Type: PERC, Half Cell, Bifacial, Double-glass, TOPCON, N-TYPE
Panel Dimensions: 2465*1134*35mm Panel Efficiency: 22.4%
Warranty: 30years, 30 Years Product Name: Solar Panel
Junction Box: IP68 ,3 Diodes Frame: Anodized Aluminium Alloy
Glass: 2.0mm Tempered Low Iron Cable: 4mm ^2 (IEC),12AWG
Wind Load, Back: 2400Pa / 2400Pa Snow Load, Front: 3000Pa / 5400Pa

Product Description
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 0
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 1
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 2
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 3
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 4
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 5
Specification
Module Type
JAM78D40-605/GB
JAM78D40-610/GB
JAM78D40-615/GB
JAM78D40-620/GB
JAM78D40-625/GB
Rated output (Pmp/Wp)
605
610
615
620
625
Short Circuit Current(Isc)
14.09A
14.16A
14.23A
14.30A
14.36A
Open Circuit Voltage(Voc)
54.90V
55.05V
55.20V
55.34V
55.49V
Maximum Power Current(Impp)
13.21A
13.28A
13.35A
13.42A
13.48A
Maximum Power Voltage(Vmpp)
45.80V
45.94V
46.07V
46.20V
46.37V
Module efficiency(%)
21.6%
21.8%
22.0%
22.2%
22.4%
Power Tolerance (W)
0~+5W
0~+5W
0~+5W
0~+5W
0~+5W
Standard Test Condition(STC)
Irradiance 1000W/m², Cell Tempera ture 25ºC, AM1.5
Packing & Delivery
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 6
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 7
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality?
A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4：After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 8
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 9
2.0mm Tempered Low Iron Glass 600-625W N-type TOPCON Bifacial Mono JA Solar PV Panels 10
