Product Details:
|

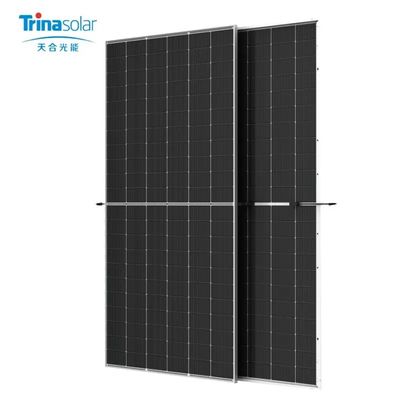

Cell Size: | 210mmx210mm | Type: | Half Cell, Bifacial, Double-glass, N-TYPE |
---|---|---|---|
Panel Dimensions: | 2172x1303x33mm | Panel Efficiency: | 21.9-22.8% |

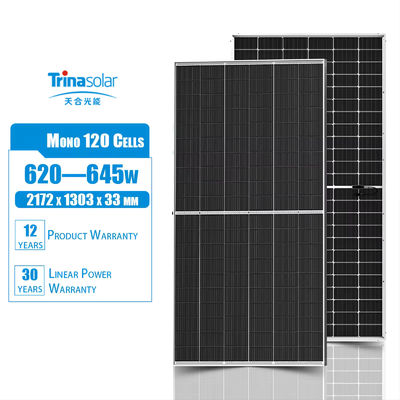

Product Name: | Trina N Type TOPCon 620-645W | Application: | Solar Power System |
Solar Cell: | N-type Monocrystalline | Keyword: | Trina Grade A Solar Panel |
Frame: | Anodized Aluminium Alloy | Junction Box: | IP68 Rated |
Glass: | 2.0mm/2.0 Mm | Cell Type: | 210mm Half Cut Cell |
Connector: | MC4 EVO2 / TS4 PLUS / TS4* | Encapsulant Material: | POE/EVA |
SPECIFICATIONS | ||||||||||||
Cell | N-type Monocrystalline | |||||||||||
Weight | 34.9kg (79.6 lb) | |||||||||||
Dimensions | 2172×1303×33 mm (85.51×51.3×1.30inches) | |||||||||||
Cable Cross Section Size | TUV: 4mm2 (0.006inches2)/UL: 12AWG | |||||||||||
No. of Cells | 120 cells | |||||||||||
Junction Box | IP68, 3 diodes | |||||||||||
Cable Length | Portrait: 350/280 mm(13.78/11.02 inches) 2.0 mm (0.08 inches), Length can be customized | |||||||||||

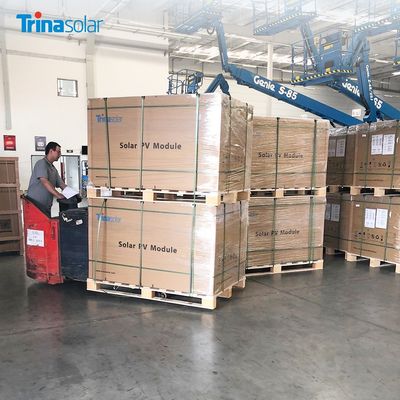

Packaging Configuration | Per pallet:36 pieces Modules/Per 40’ container: 720 pieces | |||||||||||
ELECTRICAL PARAMETERS AT STC | ||||||||||||
Rated Maximum Power (Pmax) [W] | 620 | 625 | 630 | 635 | 640 | |||||||
Maximum Power Voltage(Vmpp/V) | 36.1 | 36.4 | 36.6 | 36.8 | 37.0 | |||||||
Maximum Power Current(Impp/A) | 17.16 | 17.19 | 17.22 | 17.26 | 17.30 | |||||||
Open Circuit Voltage(Voc/V) | 43.2 | 43.5 | 43.9 | 44.2 | 44.5 | |||||||
Short Circuit Current(Isc/A) | 18.18 | 18.21 | 18.24 | 18.27 | 18.30 | |||||||

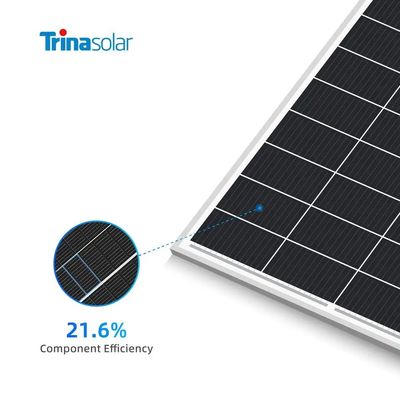

Module Efficiency [%] | 21.9% | 22.1% | 22.3% | 22.6% | 22.8% | |||||||
Power Tolerance | 0~+5W | |||||||||||
Temperature Coefficient of Isc [α_Isc] | +0.043%/°C | |||||||||||
Temperature Coefficient of Voc [β_Voc] | -0.26%/°C | |||||||||||
Temperature Coefficient of Pmax [γ_Pmp] | -0.36%/°C | |||||||||||
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5 |
