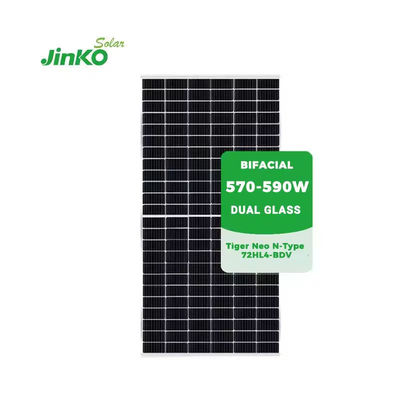

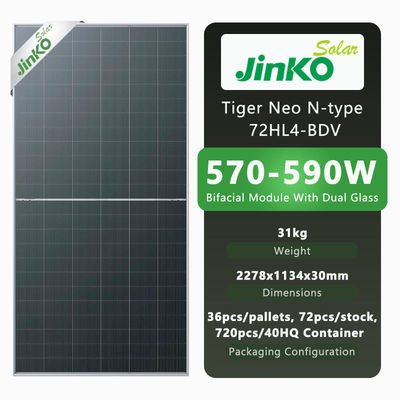

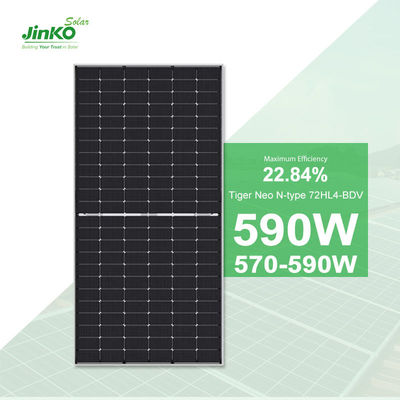

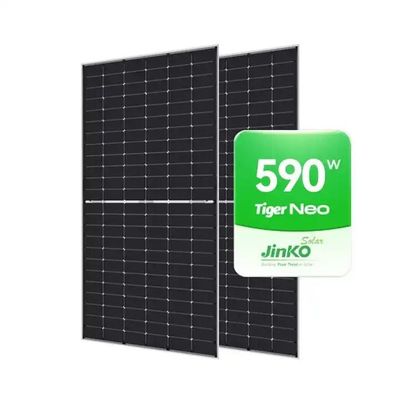

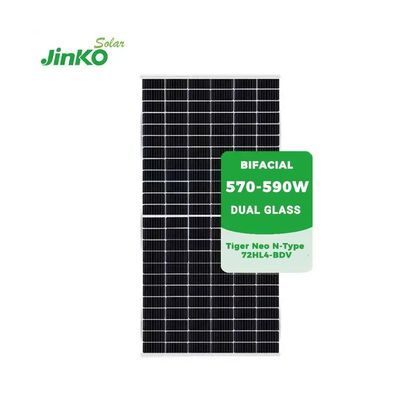

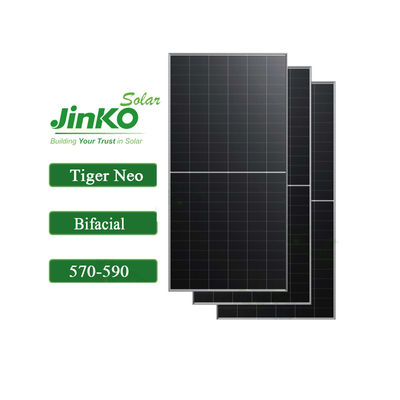

Jinko Solar Tiger Neo N-type PV Solar Panels 590W 585W 580W 575W 570W for On Grid Solar System

Large Image : Jinko Solar Tiger Neo N-type PV Solar Panels 590W 585W 580W 575W 570W for On Grid Solar System

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Jinko
Model Number:	78HL4-BDV 570W-590W

Payment & Shipping Terms:

Minimum Order Quantity:	100000 watts
Price:	$0.11/watts 100000-1499999 watts

Contact Now

Jinko Solar Tiger Neo N-type PV Solar Panels 590W 585W 580W 575W 570W for On Grid Solar System

Description

Cell Size:	182mmx182mm	Type:	PERC, Half Cell, Bifacial, Double-glass, N-TYPE
Panel Dimensions:	2278113430mm	Panel Efficiency:	22.84%, 22.84%
Warranty:	25 Years, 25 Years	Product Name:	Solar Panel 78HL4-BDV(570W-590W)
No. Of Cells:	144 (2*72)	Cell Type:	N Type Mono-crystalline
Junction Box:	IP68 Rated	Front Glass:	2.0mm,Anti-Reflection Coating
Certificate:	CE TUV	Back Glass:	2.0mm, Heat Strengthened Glass
Power Tolerance:	0-+3%

Product Description

Specification

Module Type	JKM570N-72HL4	JKM575N-72HL4	JKM580N-72HL4	JKM585N-72HL4	JKM590N-72HL4
Maximum Power (Pmax)	570Wp	575Wp	580Wp	585Wp	590Wp
Maximum Power Voltage (Vmp)	41.95V	42.14V	42.29V	42.44V	42.59V
Maximum Power Current (Imp)	13.35A	13.41A	13.48A	13.55A	13.62A
Open-circuit Voltage (Voc)	50.67V	50.87V	51.07V	51.27V	51.47V
Short-circuit Current (Isc)	14.13A	14.19A	14.25A	14.31A	14.37A
Module Efficiency STC (%)	21.68%	21.87%	22.07%	22.26%	22.45%
Operating Temperature(ȭ)	-40℃~+85℃
Maximum system voltage	1000/1500VDC (IEC)
Maximum series fuse rating	30A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.29%/℃
Temperature coefficients of Voc	-0.25%/℃
Temperature coefficients of Isc	0.045%/℃
Nominal operating cell temperature (NOCT)	45±2℃

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

FAQ

Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality?

A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4：After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
