Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit

Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit

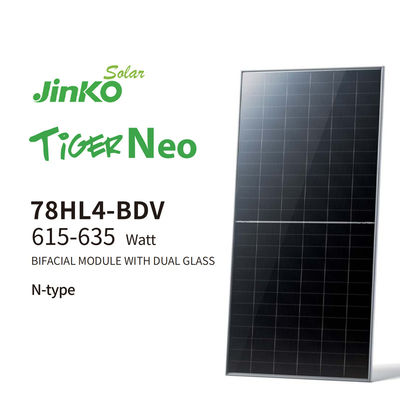

Large Image :  Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit

Product Details:
Place of Origin: Anhui
Brand Name: Jinko
Model Number: 78HL4-BDV
Payment & Shipping Terms:
Minimum Order Quantity: 500000 watts
Price: $0.10/watts 500000-999999 watts
Contact Now

Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit

Description
Cell Size: 182mmx182mm Type: Half Cell, Bifacial, Double-glass, N-TYPE
Panel Dimensions: 2465*1134*30mm Panel Efficiency: 22.7%, 22.7%
Product Name: Solar Panel 78HL4-BDV (615W-635W) Warranty: 25 Years
No. Of Cells: 156(2*78) Cell Type: N Type Mono-crystalline
Junction Box: IP68 Rated Front Glass: 2.0mm,Anti-Reflection Coating
Certificate: CE TUV Frame: Anodized Aluminium Alloy
Power Tolerance: 0-+3%

Product Description
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 0
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 1
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 2
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 3
Specification
SPECIFICATIONS(STC)
Module Type
JKM615N-630N-78HL4-V
Maximum Power (Pmax)
615Wp
620Wp
625Wp
630Wp
635Wp
Maximum Power Voltage (Vmp)
46.81
46.97
47.14
47.30
47.46
Maximum Power Current (Imp)
13.14
13.20
13.26
13.32
13.38
Open-circuit Voltage (Voc)
56.25
56.40
56.55
56.70
56.86
Short-circuit Current (Isc)
13.80
13.86
13.92
13.98
14.04
Module Efficiency STC (%)
22.00
22.18
22.36
22.54
22.72
Operating Temperature(℃)
-40℃~+85℃
Maximum system voltage
1000/1500VDC (IEC)
Maximum series fuse rating
25A
Power tolerance
0~+3%
Temperature coefficients of Pmax
-0.30%/℃
Temperature coefficients of Voc
-0.25%/℃
Temperature coefficients of Isc
0.046%/℃
Nominal operating cell temperature (NOCT)
45±2℃
Packing & Delivery
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 4
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 5
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 6
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 7
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 8
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 9
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 10
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 11
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 12
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality?
A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4：After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 13
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 14
Bifacial 500W 540W 545W 550 Watt 550W 600W 670W 700W Pv Solar Panels for Your Benefit 15
