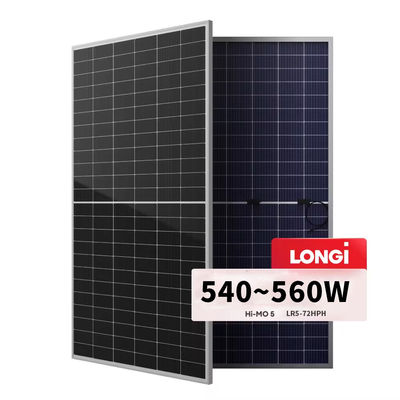

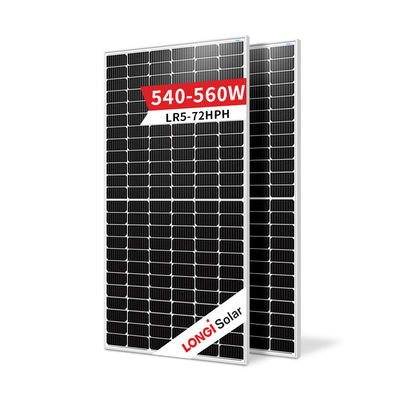

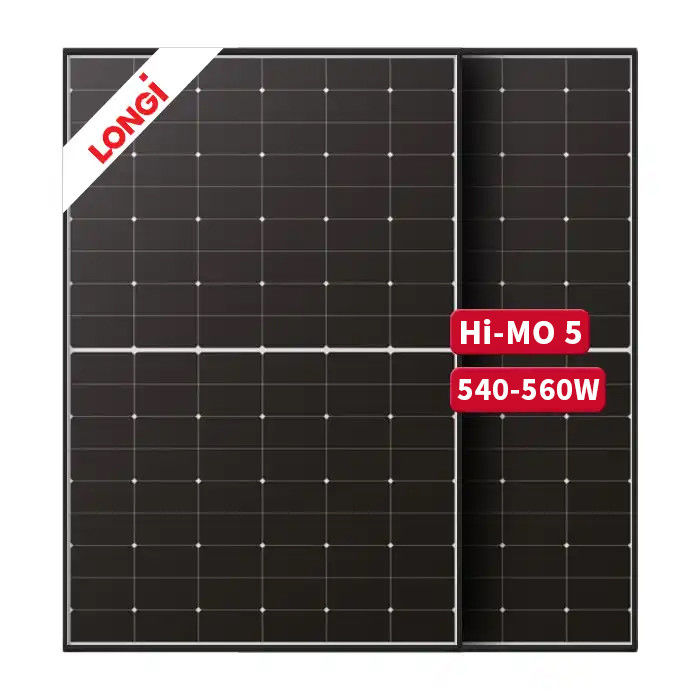

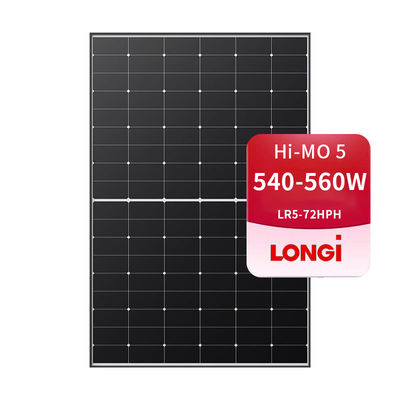

Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales

Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales

Large Image :  Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales

Product Details:
Place of Origin: Anhui, China
Brand Name: Longi
Model Number: LR5-72HPH
Payment & Shipping Terms:
Minimum Order Quantity: 100000 watts
Price: $0.13/watts 100000-299999 watts
Contact Now

Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales

Description
Cell Size: 182mmx182mm Type: PERC, Half Cell, N-TYPE, TOPCON
Panel Dimensions: 2278*1134*35mm Panel Efficiency: 21.7%
Warranty: 25years Product Name: Solar Panel 540~560w
Power Tolerance: 0-3% First Year Power Degradation: <2%
Year 2-25 Power Degradation: 0.55% Cell: Half-Cell
Junction Box: IP68, Three Diodes Connector: MC4 Compatible Connector
Back Sheet: White Back-sheet Frame: Anodized Aluminium Alloy
Frame Color: Silivery

Product Description
LONGi supplies more than 30GW of high-efficiency solar wafers and modules worldwide yearly, about a quarter of global market demand. LONGi is recognized as the world’s most valuable solar technology company with the highest market value
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 0
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 1
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 2
Specification
MECHANICAL Parameters
Cell Orientation
144(6*24)
Junction Box
IP68, three diodes
Output Cable
4mm², +400,-200mm/±1400mm length can be customized
Glass
Single glass, 3.2mm coated tempered glass
Frame
Anodized aluminum alloy frame
Weight
27.5kg
Dimension
2278× 1134× 35mm
Packaging
31pcs per pallet / 155pcs per 20’ GP / 620pcs per 40’ HC
Electrical Characteristics (STC)
Model Type
LR5-72HPH-540M
LR5-72HPH-545M
LR5-72HPH-550M
LR5-72HPH-555M
LR5-72HPH-560M
Maximum Power (Pmax)(W)
540
545
550
555
560
Open Circuit Voltage (Voc)(V)
49.50
49.65
49.80
49.95
50.10
Short Circuit Current (Isc)（A)
13.85
13.92
13.98
14.04
14.10
Voltage at Maximum Power(Vmp/V)
41.65
41.80
41.95
42.10
42.25
Current at Maximum Power (lmp/A)
12.97
13.04
13.12
13.19
13.26
Module Efficiency(%)
20.9
21.1
21.3
21.5
21.7
OPERATING CONDITIONS
Operating Temperature
-40°C-+85°C
Power Output Tolerance
0~3%
Voc and Isc Tolerance
±3%
Maximum System Voltage
DC1500V(IEC/UL)
Maximum Series Fuse Rating
25A
Nominal Operating Cell Temperature
45±2°C
Protection Class
Class ||
Fire Rating
UL type 1 or 2, IEC Class C
Packing & Delivery
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 3
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 4
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 5
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 6
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 7
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 8
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 9
Longi Solar Panel Monocrystalline Silicone Solar Module Set 540W 555W 560W and Sales 10
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality?
A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4：After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
