Product Details:
|
Cell Size: | 182mmx182mm | Type: | PERC, Half Cell, TOPCON, N-TYPE |
---|---|---|---|
Panel Dimensions: | 1722*1134*30mm | Panel Efficiency: | 23% |

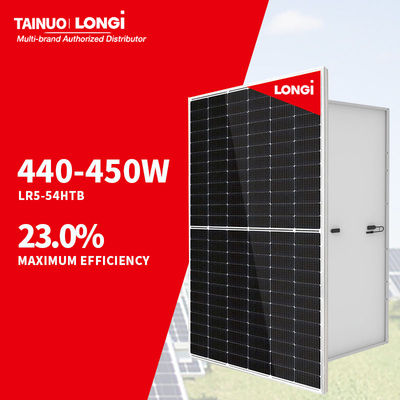

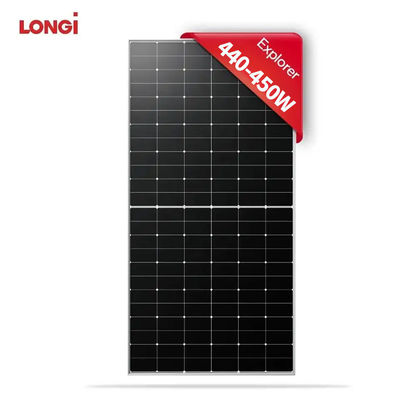

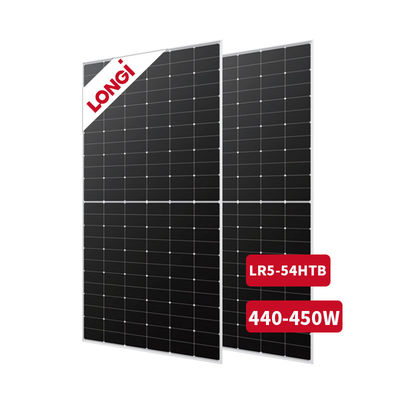

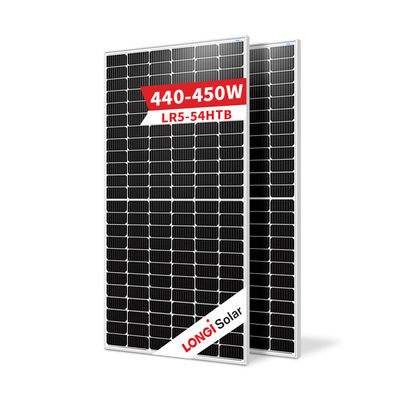

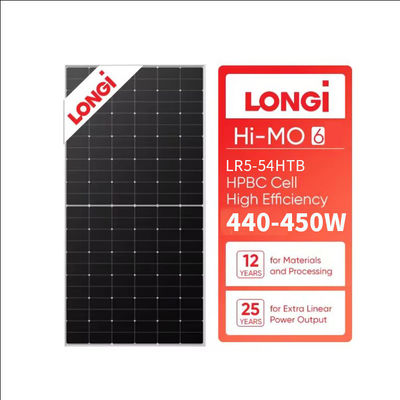

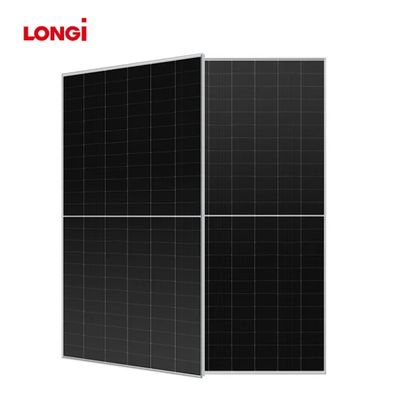

Warranty: | 25years | Product Name: | Solar Panel 440~450w |
First Year Decay: | <1.5% | Over One Years Decay: | <0.40% |
Packaging: | 31pcs Per Pallet/155pcs Per 20' GP/682pcs Per 40° HC |
Mechanical Specifications | ||
Junction Box | IP68, three diodes | |
No. of cells | 108 (6*18) | |
Output Cable | 4mm2,+400,-200mm/±1400mmlength can be customized | |
Glass | Single glass, 3.2mm coated tempered glass | |
Frame | Anodized aluminum alloy frame | |
Weight | 20.8kg | |
Dimension | 1722×1134×30mm | |
Packaging | 36pcs per pallet/216pcs per 20' GP/936pcs per 40° HC |
