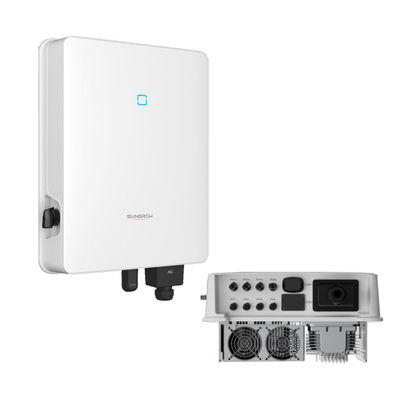

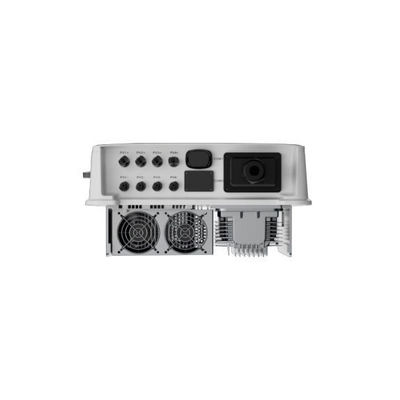

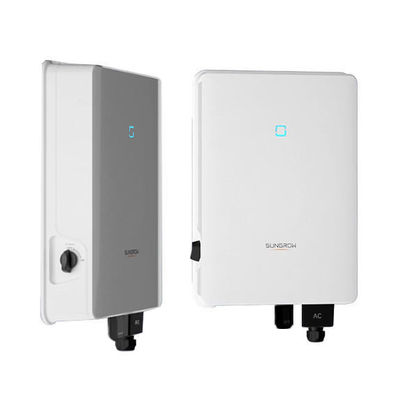

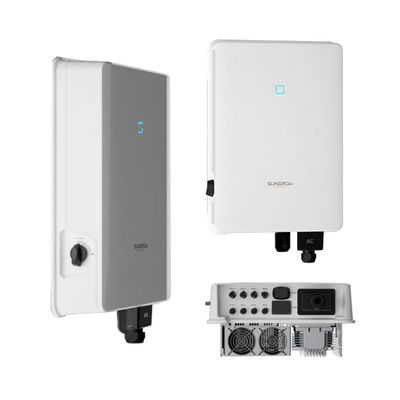

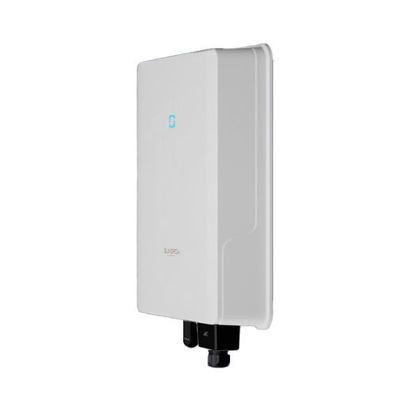

SG10T-CN Sungrow On-grid Residential PV Inverter with LED Display 10KW 15KW 30KW 50KW

Large Image : SG10T-CN Sungrow On-grid Residential PV Inverter with LED Display 10KW 15KW 30KW 50KW

Product Details:

Place of Origin:	Anhui
Brand Name:	Sungrow
Model Number:	SG10/12/15T-CN

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$480.00/sets 2-99 sets

Contact Now

SG10T-CN Sungrow On-grid Residential PV Inverter with LED Display 10KW 15KW 30KW 50KW

Description

Input Voltage:	600V	Output Voltage:	270-480V
Output Current:	16.7-28.3A	Output Frequency:	50/60Hz
Output Type:	Three Phase	Size:	370480195 Mm
Type:	DC/AC Inverters	Inverter Efficiency:	98.5%
Certificate:	IEC 62109-1/-2	Warranty:	5 Years
Weight:	23kg	Product Name:	Sungrow Inverter
Application:	On-grid Solar Power System	MPPT Efficiency:	99%
DC Connection:	MC4 (Max. 6 Mm2)	Display:	LED
Communication:	WiFi / GPRS (optional)

Product Description

Specification

Efficiency
Max. efficiency	98.50%
European efficiency	98.10%
Protection&Function
Grid monitoring	Yes
DC reverse connection protection	Yes
AC short-circuit protection	Yes
Leakage current protection	Yes
Surge Protection	DC Type Ⅱ/AC Type Ⅱ
DC switch	Optional
Arc fault circuit interrupter (AFCI)	Yes
PID recovery function	Yes
General Data
Dimensions (WHD)	370480195 mm
Mounting method	Wall-mounting bracket
Weight	17 kg
Topology	Transformerless
Degree of protection	IP65
Operating ambient temperature range	-25 ℃ to 60 ℃
Allowable relative humidity range (non-condensing)	0% - 100%
Cooling method	Natural cooling
Max. operating altitude	4000 m (>2000 m derating)
Display	LED
Communication	GPRS
DC connection type	MC4
AC connection type	Plug and play
Compliance	IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4, NB/T32004-2018
Country of manufacture	China

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
