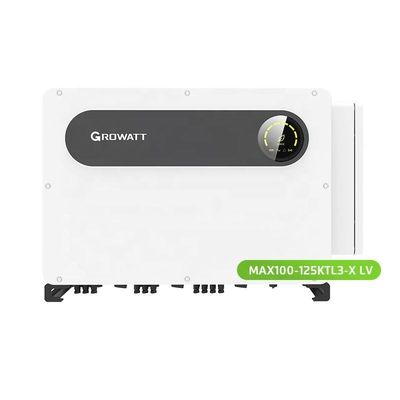

110kw Growatt Max 110KTL3-X2 LV On Grid Solar Inverter with and WIFI/RS485 Communication

Name: 110kw Growatt Max 110KTL3-X2 LV On Grid Solar Inverter with and WIFI/RS485 Communication
Brand: Hefei Tainuo New Energy Technology Co., Ltd.
SKU: MAX 100-125KTL3-X LV
Price: 3.00 USD
Availability: InStock

All Products

Solar Light
(40)

Solar Rechargeable Fan
(31)

Solar Mosquito Killer Lamp
(13)

Solar Powered Radio
(16)

Solar Lighting System
(15)

Portable Mini Solar Panels
(20)

Foldable Solar Panels
(58)

Portable Solar Power Station
(61)

Solar Air Conditioner
(20)

Tier 1 Solar Panels
(506)

Solar Inverter
(266)

Solar Energy System
(61)

Solar Lithium Battery
(120)

Flexible Solar Panels
(40)

I'm Online Chat Now

110kw Growatt Max 110KTL3-X2 LV On Grid Solar Inverter with and WIFI/RS485 Communication

Large Image : 110kw Growatt Max 110KTL3-X2 LV On Grid Solar Inverter with and WIFI/RS485 Communication

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Growatt
Model Number:	MAX 100-125KTL3-X LV

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	$2,350.00/pieces 5-499 pieces

Contact Now

110kw Growatt Max 110KTL3-X2 LV On Grid Solar Inverter with and WIFI/RS485 Communication

Description

Input Voltage:	180V-1000V	Output Voltage:	220V/380V, 230V/400V (340-440V)
Output Current:	158.8A-208.9A	Output Frequency:	50/60 Hz; 45~55Hz/55-65 Hz
Output Type:	Three Phase	Size:	970640345mm
Type:	DC/AC Inverters	Inverter Efficiency:	98.8%
Certificate:	CE,IEC62116,IEC61727	Warranty:	5 Years / 10 Years
Weight:	84KG	Rated Power:	100-125KW
Max. DC Voltage:	1100V	No. Of MPP Trackers:	10
Communication:	WIFI / RS485	Protection Degree:	IP66
Display:	LED/WiFi + APP	AC/DC Surge Protection:	Type II / Type II
String Detection:	Yes

Product Description

Specification

Datasheet	MAX 100KTL3-X2 LV	MAX 110KTL3-X2 LV	MAX120KTL3-X2LV	MAX 125KTL3-X2 LV
Input data (DC)
Max. DC voltage	1100V
Start voltage	195V
Nominal voltage	600V
MPP voltage range	180V-1000V
No. of MPP trackers	8
No. of PV strings per MPP tracker	2
Max. input current per MPP tracker	45A
Max. short-circuit current per MPP tracker	56.5A
Output data (AC)
AC nominal power	100000W	110000W	120000W	125000W
Max. AC apparent power	110000VA	121000VA	132000VA	137500VA
Nominal AC voltage (range*)	220V/380V, 230V/400V (340-440V)
AC grid frequency (range*)	50/60 Hz(45~55Hz/55-65 Hz)
Max. output current	158.8A @400V	174.6A @400V	190.5A @400V	198.5A@400V
Max. output current		167.1A@380V	183.8A@380V	200.5A@380V	208.9A@380V
Adjustable power factor	0.8leading ...0.8lagging
THDi	<3%
AC grid connection type	3W/N/PE
Efficiency
Max.efficiency	98.8%
European efficiency	98.4%
MPPT efficiency	99.9%
Protection devices
DC reverse polarity protection	Yes
DC switch	Yes
AC/DC surge protection	Type II / Type II
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
String detection	Yes
Anti-PID function	Optional
Arc fault detection (AFCI)	Optional
General data
Dimensions (W / H / D)	970/640/345mm
Weight	84kg
Operating temperature range	–30°C ... +60°C
Nighttime power consumption	< 1W
Topology	Transformerless
Cooling	Smart air cooling
Protection degree	IP66
Relative humidity	0~100%
Altitude	4000m
DC connection	H4/MC4 (Max.6mm²)
AC connection	OT Terminal (Max. 240mm²)
Display	LED/WIFI+APP
Interfaces: RS485/USB/PLC/ GPRS/4G/WiFi	Yes/Yes/Optional/Optional/Optional/Optional
Warranty: 5 years / 10 years	Yes /Optional

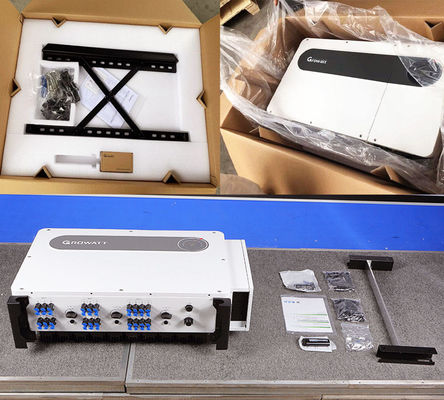

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
