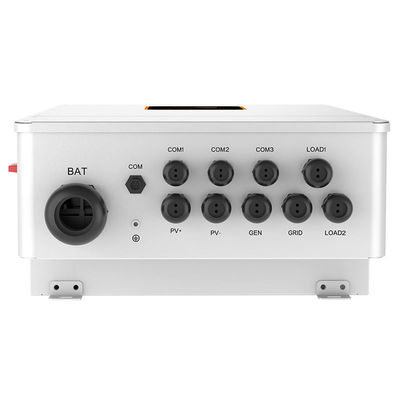

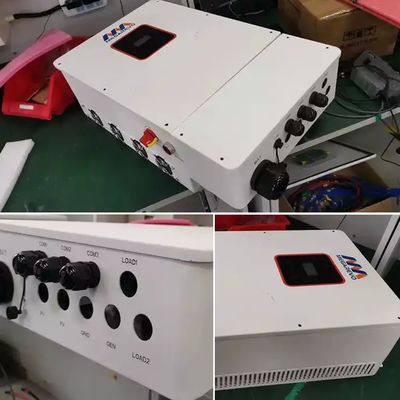

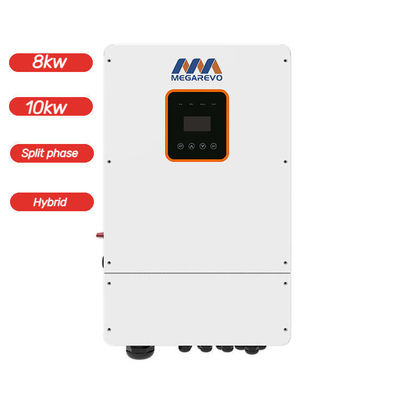

120-500v Input Voltage Split Phase Solar Inverter for On/Off Grid Hybrid Integration

Large Image : 120-500v Input Voltage Split Phase Solar Inverter for On/Off Grid Hybrid Integration

Product Details:

Place of Origin:	Anhui
Brand Name:	Megarevo
Model Number:	R5K-10KLNA

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$1,300.00/sets 2-99 sets

Contact Now

120-500v Input Voltage Split Phase Solar Inverter for On/Off Grid Hybrid Integration

Description

Input Voltage:	120~500v	Output Voltage:	120/240(split Phase),240 (single Phase)
Output Current:	20.8-41.7A	Output Frequency:	50/60Hz
Output Type:	Single, Split Phase	Size:	460225760mm
Type:	DC/AC Inverters	Inverter Efficiency:	98.2%
Certificate:	CE/INMETRO/TUV/VDE	Warranty:	10 Years
Weight:	41KG	Product Name:	Megarevo Inverter
Application:	Hybrid Solar Power System	Protection Degree:	IP65
Display:	LCD Display	Battery Type:	Lithium /Lead-acid
Battery Voltage:	48VDC	Operating Altitude:	2,000m(>2,000 Derating)
Cooling:	Forced Air

Product Description

Specification

Technical specification	R5KLNA	R6KLNA	R8KLNA	R10KLNA
PV string input
Max.power(kW)	7.5	9	12	13
Max.DC voltage (V)	500
MPPT voltage range(V)	120~500
Max.Input current of single MPPT(A)	14
No.of MPPT trackers	4
No.of strings per MPPT trackers	1
AC output
Rated output power(kVA)	5	6	8	10
Max.apparent Power(kVA)	5.5	6.6	8.8	11
Rated output current(A)	20.8	25	33.3	41.7
Ac output voltage(V)	120/240(split phase),240 (single phase)
Frequency (Hz)	50/60
PF	0.8lagging-0.8leading
THDi	<3%
AC output topology	Split phase,single phase
Battery
Battery voltage range(V)	40~58
Max.charging voltage(V)	58
Max.charge/discharge current(A)	120/120	135/135	190/190	190/210
Battery type	lithium /Lead-acid
Communication interface	CAN/RS485
EPS output
Rated power(kVA)	5	6	8	10
Rated output voltage(V)	120/240(split phase),240 (single phase)
Rated output current(A)	20.8	25	33.3	41.7
Rated frequency(Hz)	50/60
Automatic switchover time(ms)	<20
THDu	<2%
Overload capacity	125%,60S/150%,1S
General data
Max,efficiency	≥98.2%
CEC efficiency	≥97.2%
Ingress protection	IP65/NEMA3R
Noise emission(dB)	<25	<29	<29	<29
Operation temperature (℃)	-25～60 (>45 Derating)
Cooling	Forced air
Relative humidity	0~95%(non-condensing)
Operation altitude (m)	2,000 (>2,000 Derating)
Dimensions WDH (mm)	460225760
Net weight (kg)	41
Topology	Non-isolated
Self-consumption at night (W)	<25
Display and communication
Display	LCD/touch screen
Interface:RS485/Wifi/4G/
CAN/Bluetooth	Yes
Safety standard	UL1741,CSAC22.2 No.107.1:16,UL1998
EMC	FCC Part 15,Class B
On-grid	IEEE1547,CPUC Rule21,SRDV2.0,UL1741 SA,UL1741 SB
DC ARC-Fault	UL1699B

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
