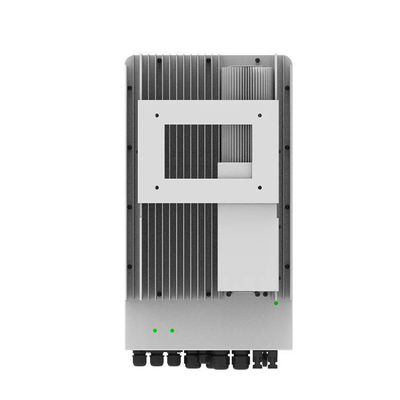

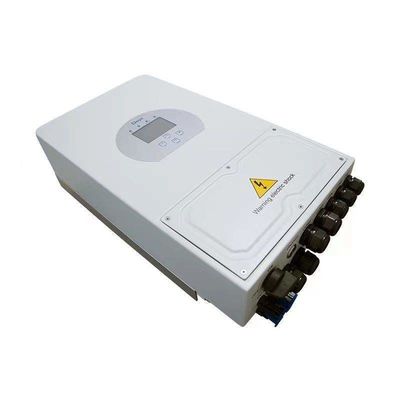

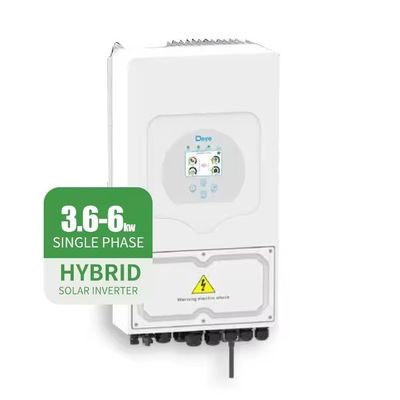

Deye SUN-5K-SG03LP1-EU 5KW Hybrid Solar Inverter with 60Hz/55Hz-65Hz Output Frequency

Large Image : Deye SUN-5K-SG03LP1-EU 5KW Hybrid Solar Inverter with 60Hz/55Hz-65Hz Output Frequency

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Deye
Model Number:	SUN-3.6/5/6K-SG03LP1-EU

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	$890.00/pieces 5-49 pieces

Contact Now

Deye SUN-5K-SG03LP1-EU 5KW Hybrid Solar Inverter with 60Hz/55Hz-65Hz Output Frequency

Description

Input Voltage:	125~500Vdc	Output Voltage:	220/230Vac
Output Current:	40A	Output Frequency:	50/60Hz, 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Output Type:	Three Phase	Size:	330W580H232D Mm
Type:	DC/AC Inverters	Inverter Efficiency:	≥99.9%
Certificate:	CEI,VDE,NRS,IEC	Warranty:	5 Years
Weight:	28/20.5kg	Product Name:	Deye Solar Inverter
Application:	Hybrid Solar Power System	Protection:	IP65
Battery Type:	Lead-acid Or Li-lon	Battery Voltage Range:	40~60V
MPPT Voltage Range (V):	150-425	No. Of MPP Trackers:	2

Product Description

Specification

Model	SUN-3.6K-SG03LP1-EU	SUN-5K-SG03LP1-EU	SUN-6K-SG03LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	90A	120A	135A
Max. Discharging Current (A)	90A	120A	135A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	4680W	6500W	7800W
PV Input Voltage (V)	370V (125V~500V)
MPPT Range (V)	150~425V
Full Load DC Voltage Range	300~425V
Start-up Voltage (V)	125V
PV Input Current (A)	11A+11A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracke	1+1
AC Output Data
Rated AC Output and UPS Power (W)	3600W	5000W	6000
Max. AC Output Power (W)	3960W	5500W	6600
Peak Power (off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	16.4	22.7	27.3
Max. AC Current (A)	18	25	40
Max. Continuous AC Passthrough (A)	35A
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 220/230 / 240Vac (single phase)
Grid Type	Single Phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	99.90%
Protection
Protection
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Surge protection	DC Type II / AC Type II
Certifications and Standards
Grid Regulation	VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3, CEI 0-21
Safety Regulation	IEC62109-1, IEC62109-2
EMC	EN61000-6-1, EN61000-6-3
General Data
Operating Temperature Range (℃)	-25~60℃, >45℃ Derating
Cooling	Smart cooling
Noise (dB)	<30dB
Communication with BMS	RS485; CAN
Weight (kg)	20.5
Size (mm)	330W×580H×232D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

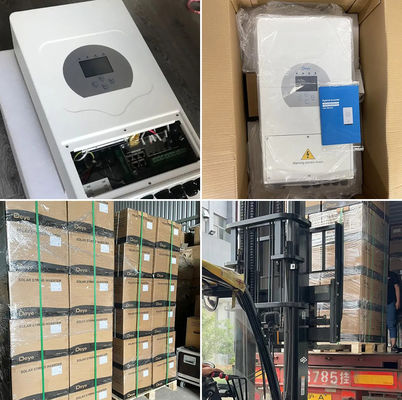

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
