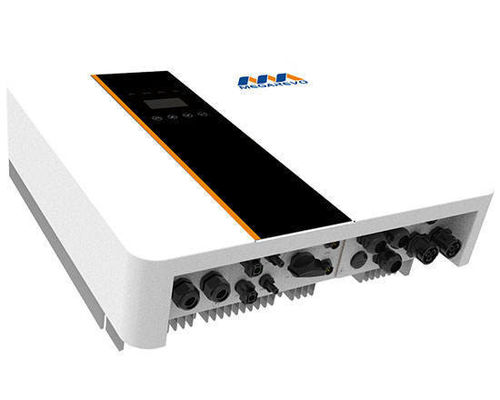

Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan

Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan
Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan

Large Image :  Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan

Product Details:
Place of Origin: Anhui
Brand Name: Megarevo
Model Number: R3-6KL1
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: $820.00/sets 2-99 sets
Contact Now

Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan

Description
Input Voltage: 125-500V Output Voltage: 230/176~270V
Output Current: 13A Output Frequency: 50/60Hz
Output Type: Single Size: 550*220*515mm
Type: DC/AC Inverters Inverter Efficiency: 99.9%
Certificate: CE/INMETRO/TUV/VDE Warranty: 5 Years
Weight: 25KG Product Name: Megarevo Inverter
Application: Hybrid Solar Power System Protection Degree: IP65
Communication Interface: WIFI / RS485 Display: LCD Display

Product Description
Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan 0
Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan 1
Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan 2
Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan 3
Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan 4
Specification
Technicalspecification
R3KL1
R3K6L1
R4KL1
R4K6L1
R5KL1
R6KL1
PVstringinput
Max.power(kW)
4.6
4.6
6
6
7
7
Max.DCvoltage(V)
550
MPPTvoltagerange(V)
125~500
Max.inputcurrentofsingleMPPT(A)
14
No.ofstringsperMPPTtrackers
1/1
ACoutput
Ratedoutputpower(kVA)
3
3.68
4
4.6
5
6
Max.outputcurrent(A)
13
16
17.4
20
21.7
26
Gridvoltage/range(V)
230/176~270
Frequency(Hz)
50/60
Powerfactor
0.99leading-0.99lagging
THDi
＜3%
ACgridtype
L+N+PE
Battery
Batteryvoltagerange(V)
40~58
Max.chargingvoltage(V)
58
Max.charge/dischargecurrent(A)
95/62.2
95/75
95/83.3
95/95.8
95/104.2
95/110
Batterytype
lithium/Lead-acid
Communicationinterface
CAN
EPSoutput
Ratedpower(kVA)
3
3.68
4
4.6
5
6
Ratedoutputvoltage(V)
230
Ratedoutputcurrent(A)
13
16
17.4
20
21.7
26
Ratedfrequency(Hz)
50/60
Automaticswitchovertime(ms)
＜10
THDu
＜2%
Overloadcapacity
110%,30S/120%,10S/150%,0.02S
Generaldata
Batterychage/dischageefficiency
0.95
DCMax.efficiency
0.976
Europeefficiency
0.97
MPPTefficiency
0.999
Ingressprotection
IP65
Noiseemission(dB)
<35
Operationtemperature
-25℃～60℃(Deratingat45℃)
Cooling
Natural
Relativehumidity
0~95%（non-condensing）
Operationaltitude(m)
2,000(>2,000Derating)
DimensionsW*D*H(mm)
550*200*515
Netweight(kg)
25
Topology
Non-isolated
Self-consumptionatnight(W)
15~25
Displayandcommunication
Display
LCD
Interface:RS485/Wifi/4G/
Yes/Opt/Opt/Yes/Yes
CAN/DRM
Safetystandard
IEC/EN62109-1/-2,IEC/EN62477-1
EMC
IEC/EN61000-6-1,IEC/EN61000-6-3
On-grid
SouthAfricaNRS097-2-1:2017,UKG98,G99,EN50549-1
Packing & Delivery
Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan 5
Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan 6
Megarevo Hybrid Solar Inverter 5KVA Single Phase R5KL1 21.7A Output for Longer Lifespan 7
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
