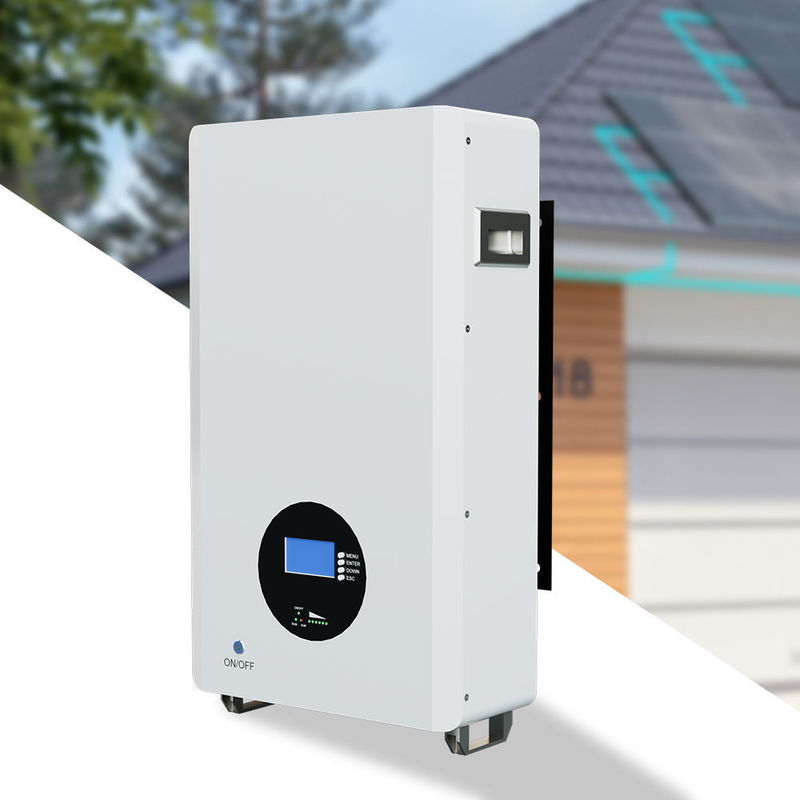

Powerwall 5kWh Home Lithium Battery Pack for Hybrid Grid Connection Solar System

Large Image : Powerwall 5kWh Home Lithium Battery Pack for Hybrid Grid Connection Solar System

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Tainuo
Certification:	TUV / CE / UN38.3 /MSDS
Model Number:	FT48100

Payment & Shipping Terms:

Minimum Order Quantity:	2 pieces
Price:	$580.00/pieces 2-499 pieces

Contact Now

Powerwall 5kWh Home Lithium Battery Pack for Hybrid Grid Connection Solar System

Description

Battery Type:	LiFePO4	Output Power Range:	5~10 KWh
Weight:	60kg	System Type:	Wall-mounted
Type:	All-in-one	Communication Port:	CAN, RS232, RS485
Protection Class:	IP65	Grid Connection:	Hybrid Grid
Product Name:	LifePO4 Lithium Battery	Cycle Life:	5000 Cycles
Communication:	RS485,CAN2.0	OEM/ODM:	Acceptable
Warranty:	5 Years Warranty	Array Mode:	16S1P
Voltage:	48V/51.2V	Standard Charging Current:	Constant: 20A(0.5C)
Minimum Capacity:	148Ah

Product Description

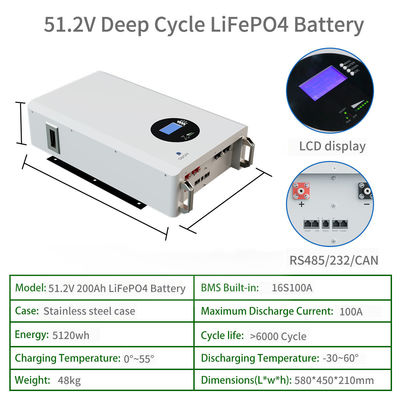

Specification

Model	FT-wall-48100	FT-wall-48200
Nominal Capacity	100Ah	200Ah
Nominal Energy	5120Wh	10240Wh
Nominal Voltage	51.2V	51.2V
Charging Voltage	58.4V	58.4V
Discharge Voltage	40V	40V
Cell	3.2V100Ah	3.2V100Ah
Cell Series＆Parallels	16S1P	16S2P
Charge Current	100A	200A
Discharging Current	100A	200A
Max. Discharge Current 10S	200A	400A
Max Discharge Power	5000W	10KW
Operating Temperature	Charge:0~50℃；Discharge:-20~60℃	Charge:0~50℃；Discharge:-20~60℃
6Cycle Life	6000 Time	6000 Time
IP Class	IP55	IP55
Dimensions	L675W400H165 mm	L715W475H55 mm
Weight	50kg	90kg
Certificate	CE/FCC/UN38.3/MSDS	CE/FCC/UN38.3/MSDS

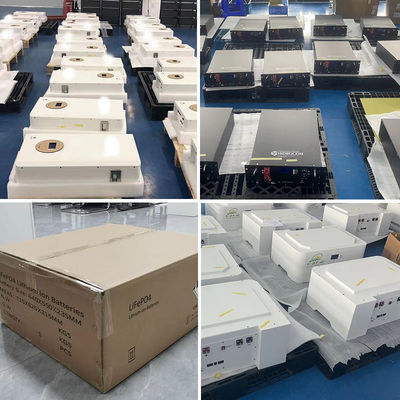

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the
price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality? A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just
tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4：After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the
date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
