Product Details:
|
Battery Size: | 18650 | Weight: | 12.5kg~30kg |
---|---|---|---|
The Charging Ratio: | 98% | The Discharge Rate: | 95% |
Storage Type: | Dry | Anode Material: | LFP |
Application: | Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Power Systems, Solar Energy Storage Systems | Electric Energy: | 200 Wh |
Voltage: | 12.8V Home Power Battery | OEM/ODM: | Accpted |
Protection: | Built-in BMS | Lifetime: | >3000times Home Power Battery |
Waterproof: | IP67 | BMS: | Built-in Home Power Battery |

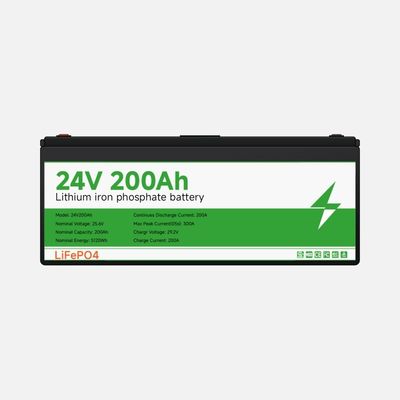

LiFePO4 Battery Pack | ||||||||
Model | KV-2450 | KV-24100 | KV-24200 | KV-24300 | ||||
Nominal Capacity | 50Ah | 100Ah | 200Ah | 300Ah | ||||
Nominal Energy | 1280Wh | 2560Wh | 5120Wh | 7680Wh | ||||
Nominal Voltage | 25.6V | |||||||
Charging Voltage | 29.2V | |||||||
Discharging Voltage | 22.4V | |||||||
Cell | 3.2V 50Ah | 3.2V 100Ah | 3.2V 100Ah | 3.2V 300Ah | ||||
Cell Series&Parallels | 8S1P | 8S1P | 8S2P | 8S1P | ||||
Charge Current | 50A | 100A | 200A | 200A | ||||
Discharging Current | 50A | 100A | 200A | 200A | ||||
Max. Discharge Current | 100A | 200A | 300A | 300A | ||||
Max Discharge Power | 1000W | 2500W | 3000W | 5000W | ||||
Operating Temperature | Charge0~50℃;Discharge-20~60℃ | |||||||
Cycle Life | 5000 Cycles | |||||||
IP Grade | IP64 | |||||||
Dimensions (mm) | 330*172*215 | 532*207*215 | 522*240*218 | |||||
Weight | 12kg | 20kg | 38kg | 56kg | ||||
Certificate | CE, FCC, UN38.3, MSDS | |||||||
Warranty | 5 Years | |||||||
Compatible with 95% Inverter Brands |
