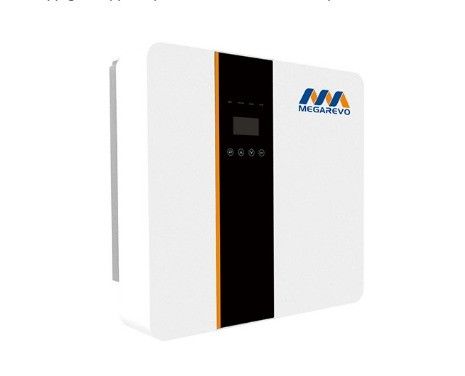

LCD Display Megarevo L1 Series 3-6kW Low Voltage Hybrid Inverter for Single Phase ESS

Large Image : LCD Display Megarevo L1 Series 3-6kW Low Voltage Hybrid Inverter for Single Phase ESS

Product Details:

Place of Origin:	Anhui
Brand Name:	Megarevo
Model Number:	R3-6KL1

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$820.00/sets 2-99 sets

Contact Now

LCD Display Megarevo L1 Series 3-6kW Low Voltage Hybrid Inverter for Single Phase ESS

Description

Input Voltage:	125-500V	Output Voltage:	230/176~270V
Output Current:	13A	Output Frequency:	50/60Hz
Output Type:	Single	Size:	550220515mm
Type:	DC/AC Inverters	Inverter Efficiency:	99.9%
Certificate:	CE/INMETRO/TUV/VDE	Warranty:	5 Years
Weight:	25KG	Product Name:	Megarevo Inverter
Application:	Hybrid Solar Power System	Protection Degree:	IP65
Communication Interface:	WIFI / RS485	Display:	LCD Display

Product Description

Specification

Technicalspeciﬁcation

R3KL1

R3K6L1

R4KL1

R4K6L1

R5KL1

R6KL1

PVstringinput

Max.power(kW)

4.6

Max.DCvoltage(V)

550

MPPTvoltagerange(V)

125~500

Max.inputcurrentofsingleMPPT(A)

No.ofstringsperMPPTtrackers

1/1

ACoutput

Ratedoutputpower(kVA)

3.68

4.6

Max.outputcurrent(A)

17.4

21.7

Gridvoltage/range(V)

230/176~270

Frequency(Hz)

50/60

Powerfactor

0.99leading-0.99lagging

THDi

＜3%

ACgridtype

L+N+PE

Battery

Batteryvoltagerange(V)

40~58

Max.chargingvoltage(V)

Max.charge/dischargecurrent(A)

95/62.2

95/75

95/83.3

95/95.8

95/104.2

95/110

Batterytype

lithium/Lead-acid

Communicationinterface

CAN

EPSoutput

Ratedpower(kVA)

3.68

4.6

Ratedoutputvoltage(V)

230

Ratedoutputcurrent(A)

17.4

21.7

Ratedfrequency(Hz)

50/60

Automaticswitchovertime(ms)

＜10

THDu

＜2%

Overloadcapacity

110%,30S/120%,10S/150%,0.02S

Generaldata

Batterychage/dischageeﬃciency

0.95

DCMax.eﬃciency

0.976

Europeeﬃciency

0.97

MPPTeﬃciency

0.999

Ingressprotection

IP65

Noiseemission(dB)

<35

Operationtemperature

-25℃～60℃(Deratingat45℃)

Cooling

Natural

Relativehumidity

0~95%（non-condensing）

Operationaltitude(m)

2,000(>2,000Derating)

DimensionsW*D*H(mm)

550*200*515

Netweight(kg)

Topology

Non-isolated

Self-consumptionatnight(W)

15~25

Displayandcommunication

Display

LCD

Interface:RS485/Wiﬁ/4G/

Yes/Opt/Opt/Yes/Yes

CAN/DRM

Safetystandard

IEC/EN62109-1/-2,IEC/EN62477-1

EMC

IEC/EN61000-6-1,IEC/EN61000-6-3

On-grid

SouthAfricaNRS097-2-1:2017,UKG98,G99,EN50549-1

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
