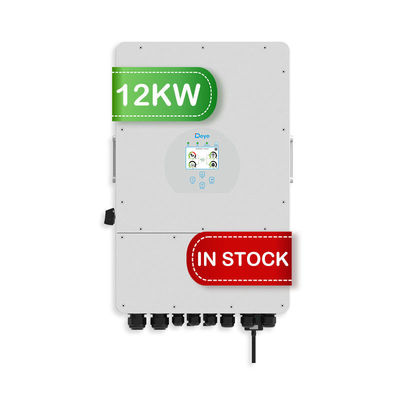

deye hybrid 12kw sun-12k-sg04lp3-eu Three Phases Sun for Ambient Temperature -25-60C

Large Image : deye hybrid 12kw sun-12k-sg04lp3-eu Three Phases Sun for Ambient Temperature -25-60C

Product Details:

Place of Origin:	Anhui
Brand Name:	Deye
Model Number:	SUN-5/6/8/10/12 K-SG04LP3-EU

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$1,999.00/sets 2-9 sets

Contact Now

deye hybrid 12kw sun-12k-sg04lp3-eu Three Phases Sun for Ambient Temperature -25-60C

Description

Input Voltage:	160~800Vdc	Output Voltage:	220/380, 230/400Vac
Output Current:	45A	Output Frequency:	50/60Hz
Output Type:	Three Phase	Size:	422/658/281mm
Type:	DC/AC Inverters	Inverter Efficiency:	≥99.9%
Certificate:	CEI,VDE,NRS,IEC	Warranty:	5 Years
Weight:	45/33.6KG	Product Name:	Solar Inverter
Application:	Hybrid Solar Power System	Battery Type:	Lead-acid Or Lithium-ion
Protection:	IP65	Ambient Temperature:	-25~60℃
Battery Voltage Range (V):	40~60V

Product Description

Specification

Model	SUN-8K-SG04LP3	SUN-10K-SG04LP3	SUN-12K-SG04LP3
Battery Input Data
Battery Type	Lead-acid or Li-lon
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	190A	210A	240A
Max. Discharging Current (A)	190A	210A	240A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	10400W	13000W	15600W
Rated PV Input Voltage (V)	550V (150V~800V)
MPPT Range (V)	200V-650V
Start-up Voltage (V)	160V
Full Load DC Voltage Range	350-650
PV Input Current (A)	13+13	26+13
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1+1	2+1
AC Output Data
Rated AC Output and UPS Power (W)	8000W	10000W	12000W
Max. AC Output Power (W)	8800W	11000W	12000W
Peak Power (off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	12A	15A	18A
Max. AC Current (A)	18A	23A	27A
Max. Continuous AC Passthrough (A)	50A
Output Frequency and Voltage	50/60Hz; 230/400Vac (Three phase)
Grid Type	Current Harmonic Distortion
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage Protection
Surge protection	DC Type II / AC Type II
Certififications and Standards
Grid Regulation	IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC / Standard	IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (℃ )	-25~60℃ , >45℃ Derating
Cooling	Smart cooling
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	36.8
Size (mm)	422W×658H×281D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
