Product Details:
Place of Origin: Anhui, China
Brand Name: TAINUO
Model Number: Foldable solar panel
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: $75.00/pieces 2-99 pieces

100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable

Description
Power: 30W Color: Black
Number Of Cells: Optional Cell Size: 156.75mmx156.75mm
Panel Dimensions: 870*530*30mm(Unfolded)-2940*595*30mm(Unfolded) Panel Efficiency: 21.4%
Product Name: Foldable Solar Panles Type: Foldable
OEM Order: Support Maximum Power Current (Impp): 2.87A-15.15A
Maximum Power Voltage (Vmpp): 20.9V-19.8V Open-circuit Voltage (Voc): 24.7V-23.4V
Output Tolerance: +3% Maximum System Voltage: 100V
Working Temperature: -20℃~+65℃

Product Description
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 0
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 1
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 2
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 3
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 4
Specification
Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃
Nominal Power
60W
80W
100W
120W
160W
200W
300W
Cell Type
Monocrystalline
Cell Efficiency
21.4%
Maximum Power Current (Impp)
2.87A
4.55A
5.35A
5.74A
9.09A
10.7A
15.15A
Maximum Power Voltage (Vmpp)
20.9V
19.6V
18.7V
20.9V
17.6V
18.7V
19.8V
Open-circuit Voltage (Voc)
24.7V
23.4V
22.1V
24.7V
20.8A
22.1V
23.4V
Short-circuit Current (Isc)
3.38A
5.06A
5.86A
6.25A
9.61A
11.21A
15.67A
Output Tolerance
+3%
Maximum System Voltage
100V
Working Temperature
-20℃~+65℃
Packaging
Module Dimensions (Unfolded)
870*530*30mm
1080*525*30mm
1210*565*30mm
1600*530*30mm
1600*525*30mm
2260*565*30mm
2940*595*30mm
Module Weight
1.9kg
2.2kg
3.8kg
4kg
6.7kg
8.3kg
11kg
Module Dimensions (Folded)
440*530*45mm
540*525*45mm
600*565*45mm
440*530*50mm
535*525*50mm
595*565*50mm
770*595*50mm
Package
Single Package
Pieces per Pallet
30
30
30
30
30
30
30
Gross Weight per Pallet
95kg
105kg
160kg
170kg
260kg
310kg
380kg
Pallet Dimensions
1200*1100*620mm
1200*1100*710mm
1200*1100*770mm
1200*1100*770mm
1200*1100*700mm
1200*1100*700mm
1200*1100*940mm

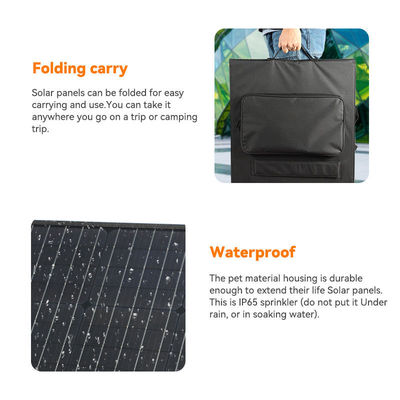

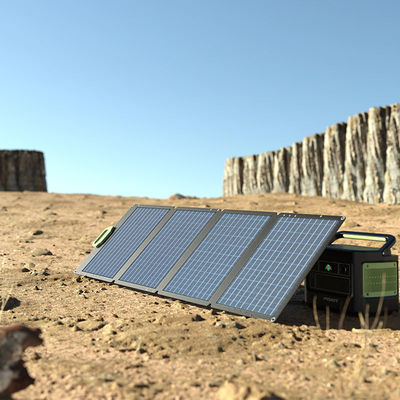

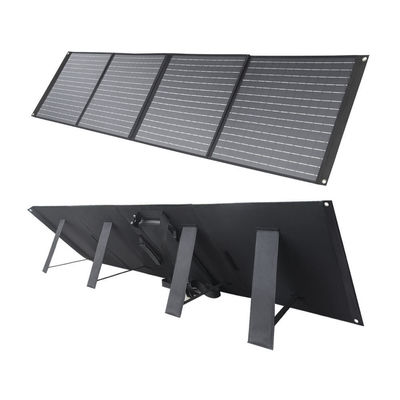

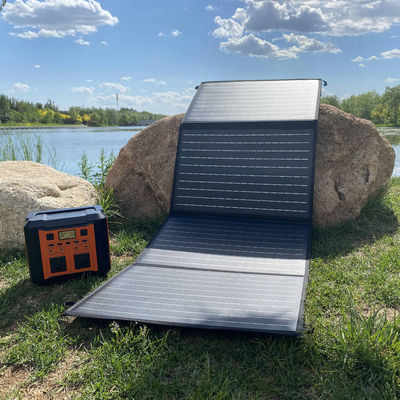

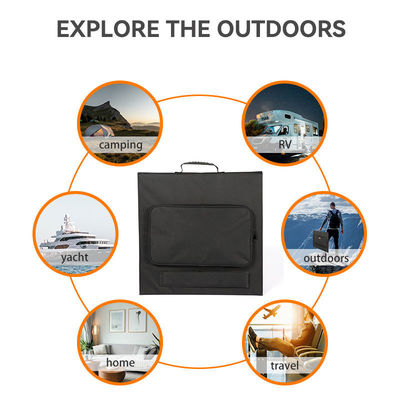

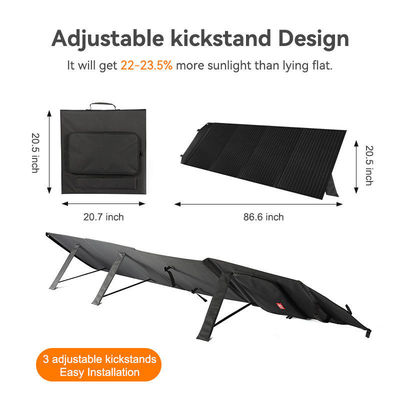

Details Images
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 5
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 6
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 7
Packing & Delivery
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 8
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 9
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality? A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4:After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 10
100w 120w 180w 200w 300w 400w Folding Solar Charging Photovoltaic Panel for Portable 11
