Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter

Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter

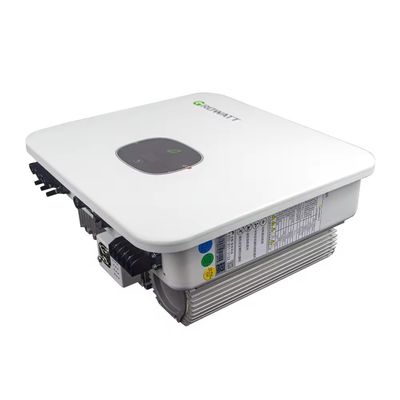

Large Image :  Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter

Product Details:
Place of Origin: Anhui
Brand Name: Growatt
Model Number: MOD 12kTL3-X
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: $500.00/sets 10-49 sets
Contact Now

Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter

Description
Input Voltage: 1100V Output Voltage: 220V/380V 230V/400V (340-440V)
Output Current: 5A-15A Output Frequency: 50/60hz
Output Type: Three Phase Size: 425/387/178mm
Type: DC/AC Inverters Inverter Efficiency: 99.9%(MPPT Efficiency)
Certificate: CE & TUV & CEI021 & CEI-016 Warranty: 5 Years
Weight: 12.5-14kg Application: On Grid Solar System
Battery Type: None Protection: IP66
Nominal AC Voltage(range*): Nominal AC Voltage(range*) AC Grid Frequency(range*): 50/60 Hz (45-55Hz/55-65 Hz)

Product Description
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 0
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 1
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 2
Specification
Model
MOD 3000TL3-X
MOD 8000TL3-X
MOD 10KTL3-X
MOD 15KTL3-X
Start voltage
160V
MPPT voltage range
140V-1000V
No. of MPP trackers
2
Battery
No Battery
Nominal AC voltage（range）
220V/380V, 230V/400V (340-440V)
AC grid frequency（range)
50/60 Hz (45-55Hz/55-65 Hz)
AC grid connection type
3W+N+PE
Dimensions (W / H / D)
425/387/147mm
425/387/178mm
425/387/178mm
Weight
12.5kg
14kg
14kg
16kg
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 3
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 4
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 5
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 6
Packing & Delivery
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 7
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 8
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 9
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 10
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 11
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
To date, millions of families and businesses across the world are using Growatt's all-scenario products and solutions to power their homes and facilities. We work with thousands of local partners to establish robust distribution and logistics networks, ensuring convenient access to our advanced product portfolios for global customers. Together, we strive to make a big difference in driving the world's energy transformation.
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 12
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 13
FAQ
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 14
Certificate CE TUV CEI021 CEI-016 Three Phase Growatt 10KW 12KW 15KW On Grid Inverter 15
