Home Solar Power System 1kw 1.5kw 2kw 3kw 5kw 10kw with ODM Supported Solar Panel Kit

Large Image : Home Solar Power System 1kw 1.5kw 2kw 3kw 5kw 10kw with ODM Supported Solar Panel Kit

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Tainuo
Model Number:	10K-FG

Payment & Shipping Terms:

Minimum Order Quantity:	10000 watts
Price:	$0.20/watts 10000-899999 watts

Contact Now

Home Solar Power System 1kw 1.5kw 2kw 3kw 5kw 10kw with ODM Supported Solar Panel Kit

Description

Warranty:	10YEARS	Free Installation Service:	NO
Application:	Home/Commercial, Home/Commercial/Industrial	Solar Panel Type:	Monocrystalline Silicon
Battery Type:	Lead-Acid, Lithium Ion	Controller Type:	MPPT
Mounting Type:	Roof/Ground	Load Power (W):	10KW
Output Voltage (V):	220v/230v/380v/400v/110v/120v	Output Frequency:	50hz/60hz
Work Time (h):	24hours	Certificate:	CE/TUV
Pre-sales Project Design:	Y	Product Name:	Off Grid Solar System
Inverter Type:	Off-grid Solar Inverter	Battery:	Lithium LifePO4/Lead Acid
OEM:	Support	ODM:	Support

Product Description

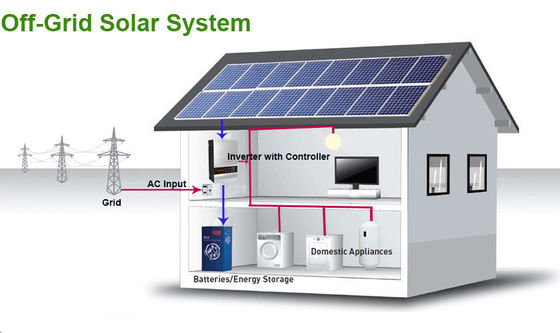

Off Grid Solar Power System

Off Grid Solar System, also can be called Stand Alone solar system. It is very stuible for the areas where this is no grid power or grid is unstable. It has battery backup for night use or rainy days use. It can provide Outage Protection, power your home..

Specification

Model	3K-FG	5K-FG	10K-FG	15K-FG
AC Voltage	Single Phase 220/230/240VAC; Split Phase 120/240VAC; Three Phase 360-415VAC
Mono Solar Panel 550W	4PCS	8PCS	16PCS	20PCS
Off-grid Inverter	3KW	5KW	10KW	15KW
Battery	Lithium Battery/Lead Acid Battery
PV Cable 4mm2/6mm2	100m	100m	200m	200m
MC4 Connector	2 Pairs(4pcs)	4 Pairs(8pcs)	8 Pairs(16pcs)	10Pairs(20pcs)
Mounting bracket	Roof/Ground Type(Can customize the mounting accoring to your real situation

Details Images

Mono /Bifacial Solar Panels

High Efficiency 166/182/210MM Latest Technology Solar Panels
Brand :WattSolar/Longi/Jinko/Trina/JA optional
Warranty: 25-30 Years

Off-grid Solar Inverter

Residential and Commercial Optional Brand: Deye/Growatt/Huawei/INVT optional
EU/US VersionWarranty: 1-5 years

Battery

GEL/Lead Acid/Lithium Battery
Optional
48V/12V/High Voltage like 192V/360V Optional
Warranty: 3-10 years

Bracket

Rooftop /Ground/Carpark Type
Can customize the mounting accoring to your installation situation
Material: Aluminum alloy/Galvanized Stee

PV Cables、Connectors、Combiner box、Installation tools(optional)

Strong Wooden Box Package

Customize for the solar panels which are not enough for one pallet, can also customize for other products
Strong and Reliable

Why Choose It

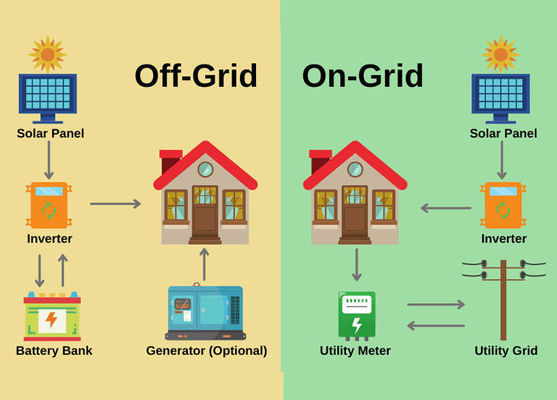

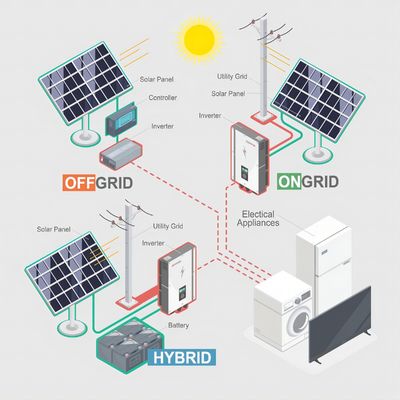

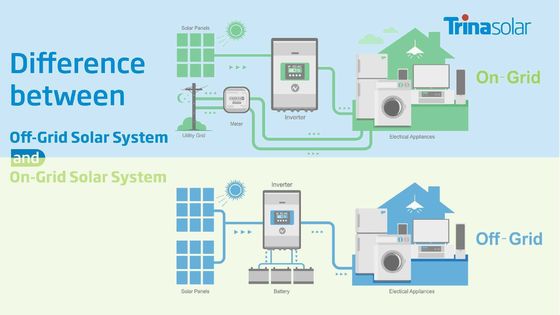

#Do You Know that there are three types of solar PV systems?

Let's uncover their differences and explore the perfect scenarios for each!

On-Grid: These systems are connected to the utility grid, enabling excess energy to be sent back and credited. Perfect for urban areas, they provide a reliable power supply and reduce electricity bills.

Off-Grid: Embrace energy independence in remote locations! Without any connection to the utility grid, off-grid systems
operateindependently and store excess energy in batteries for cloudy or nighttime use.

Hybrid: Experience the best of both worlds.

Stay connected to the grid with battery backup, ensuring a constant power supply even during grid outages.
Choose the system that suits your needs and join us in building a cleaner and brighter future!

Advantages of Off-grid Solar Energy Systems:

1. Avoiding Power Outages: A key advantage of the hybrid solar system over a traditional one is that it delivers continuous power.Because the batteries connected to hybrid solar systems store energy, they provide continuous power without interruption. During power outages, the batteries work as inverters to provide you with backup power for your home and important appliances. When the sun goes down or when there’s a power outage, batteries provide backup power to keep things running smoothly.While interruptions lasting a few minutes to a few hours are nuisances, those that last days or weeks are incredibly stressful since homeowners will
fully experience the discomfort during these times. Living without lighting is inconvenient and having to wait for the service to go back up is frustrating.
Installing an off-grid solar system on your home makes it self-sufficient in terms of energy gathering.
Batteries charged with solar energy can allow your home to function without having to worry about storms, rains, winds, cold snaps, and heatwaves that can disrupt power by damaging power lines or increasing energy demand.
The equipment of an off-grid system is standalone, and all you’ll have to worry about is your power demands to avoid power
outages.
2. Reducing Electricity Costs: Using off-grid renewable energy eliminates your reliance on finite resources like fossil fuels that increase in price as they deplete, while also eliminating the need to pay for electric bills.
Although the initial cost for an off-grid solar system is high, the low monthly rates and low maintenance costs make up for it in the long run.
Off-grid solar systems rely only on the sun to produce energy for a household, which means that there are no monthly electric bills to pay. Maintenance costs are also lower than standard thanks to the inception of LED fixtures that require only the changing of batteries.
3. Easier Installation: Since the equipment associated with off-grid solar systems are not dependent on the grid, the installation process is much more straightforward than having to rely on complex infrastructure to function.
For instance, the installation of grid-tied systems requires the service of professionals to connect it to the city’s electric
grid. On the other hand, installing an off-grid solar system only requires a homeowner to be knowledgeable of common tools. The process is not as complicated, which could eliminate the need of hiring a professional. Also taken out of the equation is the costly process of trenching to put the collected solar energy on the grid, which is necessary when going for grid-tied systems.
4. Providing an Alternative Power Source for Rural Areas: The inhabitants of rural and remote areas face a significant problem regarding electricity; they have fewer (and less advanced) infrastructure than urbanized places which results in difficulty of connecting to the primary power grid.
The chances of blackouts are higher in remote areas, which makes living conditions uncomfortable. With such limited access to the grid anyway, an off-grid solar system would be perfect for rural households.
If you live in a rural area, an off-grid solar system can make your home self-sufficient and more independent from inconsistent city power. It is also normally cheaper, and gives you more availability to move where there aren’t any city power lines.
5. Keeps the Environment Clean and Green: Whether you use off-grid or on-grid solar systems, they will still be more
environmentally-friendly than fossil fuel power. Renewable energy lets everyone generate electricity without having to burn fossil fuels, thereby, reducing the carbon footprint produced by using power.
Going off the grid is beneficial to nature as it minimizes the harmful effects of electricity on the environment by not being
dependent on burning fossil fuels that end up polluting the air

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality? A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4：After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
